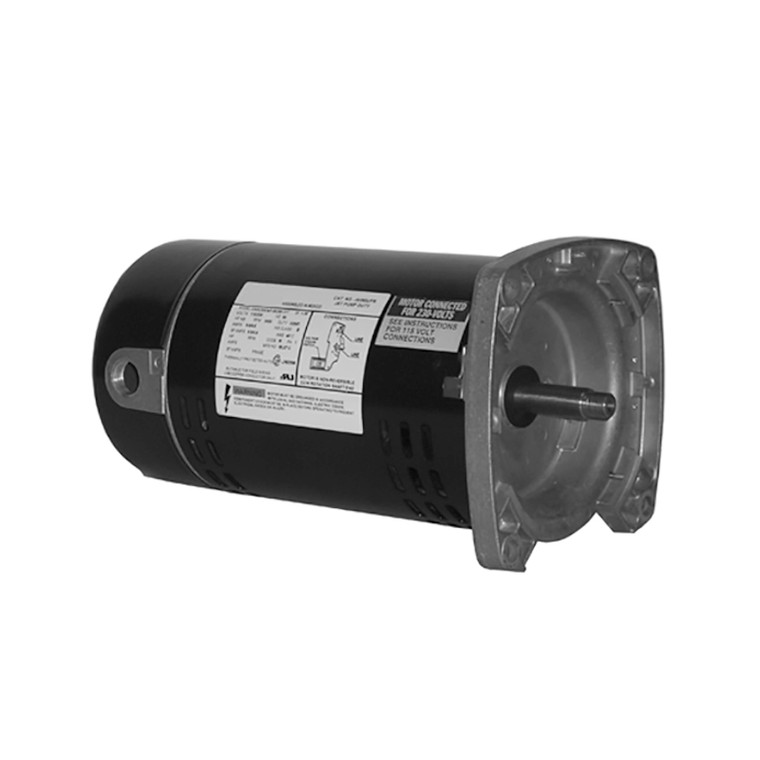

US Motors (Nidec), AC Motor, JS075UPR, 0.75 HP, 3600 RPM, Single Phase, 115/230 V, 60 Hz, 48Y (JS075UPR)

US Motors (Nidec), AC Motor, JS075UPR, 0.75 HP, 3600 RPM, Single Phase, 115/230 V, 60 Hz, 48Y (JS075UPR)

Brand:
US Motors (Nidec)
Model:
JS075UPR
Condition:
New
0 Customer Reviews
VFDs.com Guarantee Badge
Out Of Stock
Call for Price
Adding to cart… The item has been added
Write a Review

Technical Specifications

Model:
JS075UPR
Brand:
US Motors (Nidec)
Product Condition:
New
Motor Type:
Pump
Horsepower Rating:
0.75 HP
Synchronous RPM:
3600 RPM
Rated RPM:
3450 RPM
Frame Size:
48Y
Rated Supply Voltage:
115/230 V
Motor Enclosure Type:
Open Drip Proof (ODP)
Full Load Torque:
4.196
Rated Voltage:
230 V
Rated Voltage:
115 V
Phase:
Single Phase
Service Factor:
1.27
Insulation Class:
B
Duty Cycle:
Continuous
C Dimension:
11.7
Bearing Type:
BALL
Rated Input Frequency:
60 Hz
Motor Full Load Amps:
10.2/5.1 A

Product Information

US Motors (Nidec) Series

3/4 HP, 3450 RPM, JS075UPR, 115/230 V, 60 HZ, 48Y
