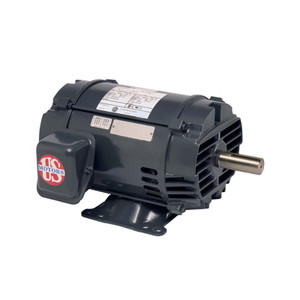

US Motors (Nidec), AC Motor, HW60V2G2, 60 HP, 1800 RPM, Three Phase, 575 V, 60 Hz, 364T (HW60V2G2)

US Motors (Nidec), AC Motor, HW60V2G2, 60 HP, 1800 RPM, Three Phase, 575 V, 60 Hz, 364T (HW60V2G2)

Brand:
US Motors (Nidec)
Model:
HW60V2G2
Condition:
New
0 Customer Reviews
VFDs.com Guarantee Badge
Out Of Stock
Call for Price
Adding to cart… The item has been added
Write a Review

Technical Specifications

Model:
HW60V2G2
Brand:
US Motors (Nidec)
Product Condition:
New
Motor Type:
Definite Purpose
Horsepower Rating:
60 HP
Synchronous RPM:
1800 RPM
Rated RPM:
1785 RPM
Frame Size:
364T
Rated Supply Voltage:
575 V
Motor Enclosure Type:
Totally Enclosed Fan Cooled (TEFC)
Motor Design Class:
B
Full Load Torque:
176.7
Rated Voltage:
575 V
Phase:
Three Phase
Service Factor:
1.15
Insulation Class:
F
Duty Cycle:
Continuous
Efficiency:
95%
Construction:
Cast Iron
C Dimension:
32.9
Bearing Type:
6313-2RS-J/C3
Rated Input Frequency:
60 Hz
Motor Full Load Amps:
55 A

Product Information

US Motors (Nidec) Series

60 HP, 1785 RPM, HW60V2G2, 575 V, 60 HZ, 364T
