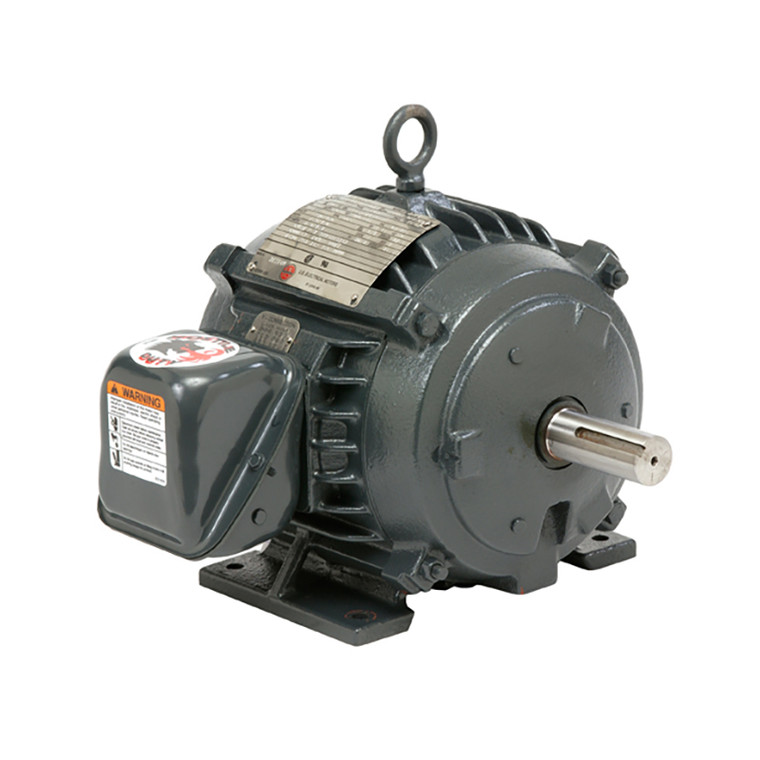

US Motors (Nidec), AC Motor, HVW7V3E6, 7.5 HP, 1200 RPM, Three Phase, 230/460 & 190/380 V, 60 , 50 Hz, 254T (HVW7V3E6)

US Motors (Nidec), AC Motor, HVW7V3E6, 7.5 HP, 1200 RPM, Three Phase, 230/460 & 190/380 V, 60 , 50 Hz, 254T (HVW7V3E6)

Brand:
US Motors (Nidec)
Model:
HVW7V3E6
Condition:
New
0 Customer Reviews
VFDs.com Guarantee Badge
Out Of Stock
Call for Price
Adding to cart… The item has been added
Write a Review

Technical Specifications

Model:
HVW7V3E6
Brand:
US Motors (Nidec)
Product Condition:
New
Motor Type:
Definite Purpose
Horsepower Rating:
7.5 HP
Synchronous RPM:
1200 RPM
Frame Size:
254T
Rated Supply Voltage:
230/460 & 190/380 V
Motor Enclosure Type:
Totally Enclosed Air Over (TEAO)
Motor Design Class:
B
Full Load Torque:
33.4
Rated Voltage:
230 V
Rated Voltage:
380 V
Rated Voltage:
460 V
Phase:
Three Phase
Service Factor:
1.15
Insulation Class:
F
Duty Cycle:
Continuous
Efficiency:
91%
C Dimension:
22.1
Bearing Type:
6309-2RS-J/C3
Rated Input Frequency:
60 Hz
Rated Input Frequency:
50 Hz
Motor Full Load Amps:
18.6/9.3 A

Product Information

US Motors (Nidec) Series

7 1/2 HP, 1180 & 970 RPM, HVW7V3E6, 230/460 & 190/380 V, 60 & 50 HZ, 254T
