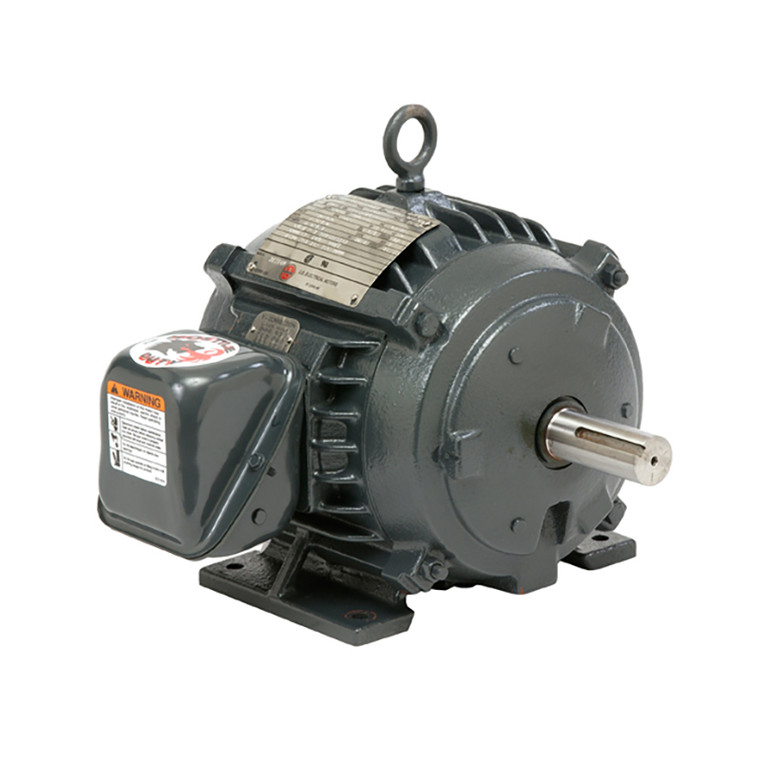

US Motors (Nidec), AC Motor, HVW3V3E6, 3 HP, 1200 RPM, Three Phase, 230/460 & 190/380 V, 60 , 50 Hz, 213T (HVW3V3E6)

US Motors (Nidec), AC Motor, HVW3V3E6, 3 HP, 1200 RPM, Three Phase, 230/460 & 190/380 V, 60 , 50 Hz, 213T (HVW3V3E6)

Brand:
US Motors (Nidec)
Model:
HVW3V3E6
Condition:
New
0 Customer Reviews
VFDs.com Guarantee Badge
Out Of Stock
Call for Price
Adding to cart… The item has been added
Write a Review

Technical Specifications

Model:
HVW3V3E6
Brand:
US Motors (Nidec)
Product Condition:
New
Motor Type:
Definite Purpose
Horsepower Rating:
3 HP
Synchronous RPM:
1200 RPM
Frame Size:
213T
Rated Supply Voltage:
230/460 & 190/380 V
Motor Enclosure Type:
Totally Enclosed Air Over (TEAO)
Motor Design Class:
B
Full Load Torque:
13.4
Rated Voltage:
230 V
Rated Voltage:
380 V
Rated Voltage:
460 V
Phase:
Three Phase
Service Factor:
1.15
Insulation Class:
F
Duty Cycle:
Continuous
Efficiency:
90.2%
C Dimension:
17
Bearing Type:
6208-2RS-J/C3
Rated Input Frequency:
60 Hz
Rated Input Frequency:
50 Hz
Motor Full Load Amps:
8.7/4.4 A

Product Information

US Motors (Nidec) Series

3 HP, 1175 & 970 RPM, HVW3V3E6, 230/460 & 190/380 V, 60 & 50 HZ, 213T
