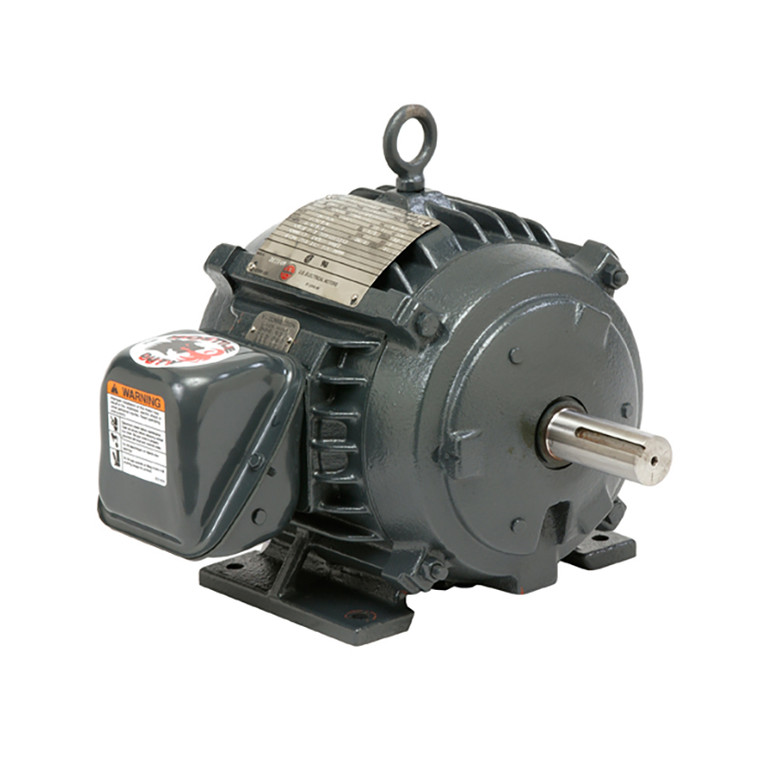

US Motors (Nidec), AC Motor, HVW10V2H6, 10 HP, 1800 RPM, Three Phase, 200 V, 60 Hz, 215T (HVW10V2H6)

Brand:
US Motors (Nidec)
Model:
HVW10V2H6
Condition:
New
0 Customer Reviews
Out Of Stock
Adding to cart… The item has been added

Technical Specifications

Model:
HVW10V2H6
Brand:
US Motors (Nidec)
Product Condition:
New
Motor Type:
Definite Purpose
Horsepower Rating:
10 HP
Synchronous RPM:
1800 RPM
Rated RPM:
1760 RPM
Frame Size:
215T
Rated Supply Voltage:
200 V
Motor Enclosure Type:
Totally Enclosed Air Over (TEAO)
Motor Design Class:
B
Full Load Torque:
29.9
Rated Voltage:
208 V
Phase:
Three Phase
Service Factor:
1.15
Insulation Class:
F
Duty Cycle:
Continuous
Efficiency:
91.7%
C Dimension:
17
Bearing Type:
6208-2RS-J/C3
Rated Input Frequency:
60 Hz
Motor Full Load Amps:
27.3 A

Product Information

US Motors (Nidec) Series

10 HP, 1760 RPM, HVW10V2H6, 200 V, 60 HZ, 215T
