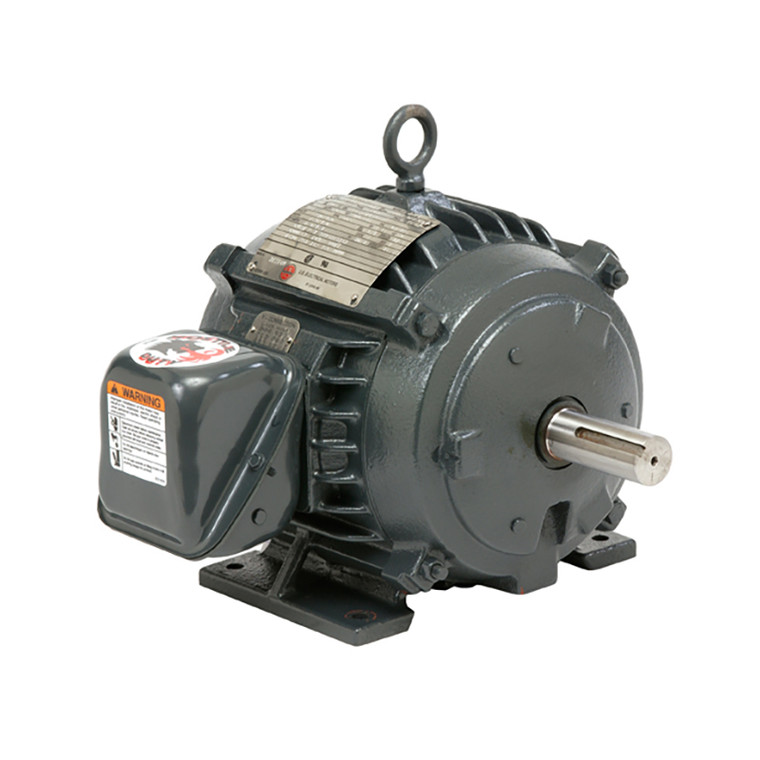

US Motors (Nidec), AC Motor, HVW10V2E8, 10 HP, 1800 RPM, Three Phase, 230/460 & 190/380 V, 60 , 50 Hz, 215T (HVW10V2E8)

US Motors (Nidec), AC Motor, HVW10V2E8, 10 HP, 1800 RPM, Three Phase, 230/460 & 190/380 V, 60 , 50 Hz, 215T (HVW10V2E8)

Brand:
US Motors (Nidec)
Model:
HVW10V2E8
Condition:
New
0 Customer Reviews
VFDs.com Guarantee Badge
Out Of Stock
Call for Price
Adding to cart… The item has been added
Write a Review

Technical Specifications

Model:
HVW10V2E8
Brand:
US Motors (Nidec)
Product Condition:
New
Motor Type:
Definite Purpose
Horsepower Rating:
10 HP
Synchronous RPM:
1800 RPM
Frame Size:
215T
Rated Supply Voltage:
230/460 & 190/380 V
Motor Enclosure Type:
Totally Enclosed Air Over (TEAO)
Motor Design Class:
B
Full Load Torque:
29.8
Rated Voltage:
230 V
Rated Voltage:
380 V
Rated Voltage:
460 V
Phase:
Three Phase
Service Factor:
1.15
Insulation Class:
F
Duty Cycle:
Continuous
Efficiency:
91.7%
C Dimension:
17
Bearing Type:
6208-2RS-J/C3
Rated Input Frequency:
60 Hz
Rated Input Frequency:
50 Hz
Motor Full Load Amps:
23.8/11.9 A

Product Information

US Motors (Nidec) Series

10 HP, 1760 & 1445 RPM, HVW10V2E8, 230/460 & 190/380 V, 60 & 50 HZ, 215T
Download Brochure
Download Manual
