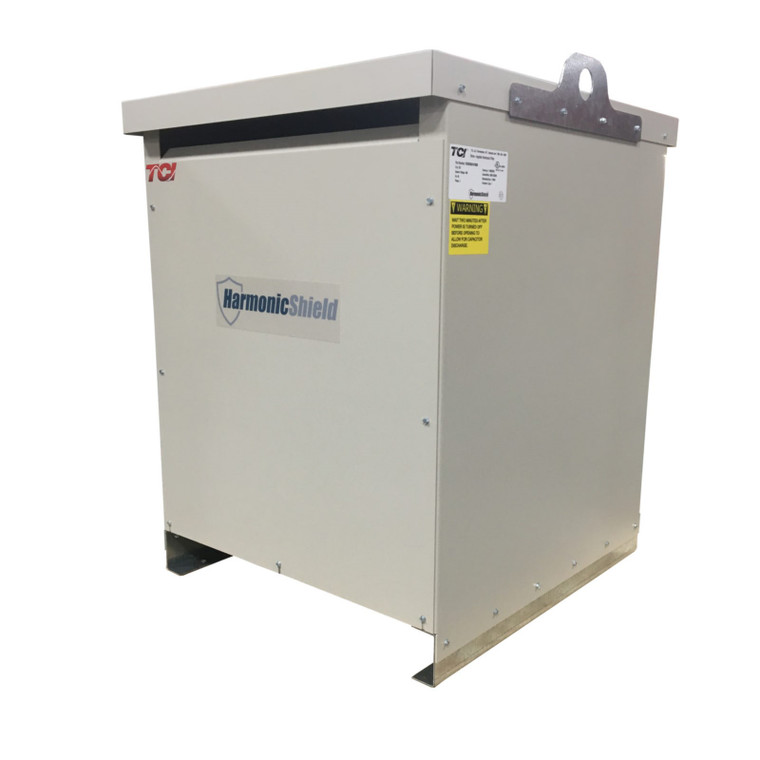

TCI HSD Harmonic Filter, 600HP, 790A, 480V, NEMA 1, w/ Contactor (HSD0600AW11000)

TCI HSD Harmonic Filter, 600HP, 790A, 480V, NEMA 1, w/ Contactor (HSD0600AW11000)

Brand:
TCI
Model:
HSD0600AW11000
Condition:
New
0 Customer Reviews
VFDs.com Guarantee Badge
Out Of Stock
Call for Price
Adding to cart… The item has been added

TCI harmonic filters help to lower the harmonic distortion caused by VFDs. They help to bring compliance and prevent electrical component damage.

HSD0600AW11000

  • 600 Horsepower
  • 790 Amps
  • 480 Volt
  • NEMA 1
Write a Review

Technical Specifications

Series:
HSD
Model:
HSD0600AW11000
Brand:
TCI
Product Condition:
New
Rated Voltage:
480 V
Rated Amps:
790 A
Phase:
Three Phase
Enclosure Rating:
NEMA 1
Heat Loss:
2700 W
Horsepower Rating:
600 HP
Height:
60.20 in
Width:
36.70 in
Depth:
39.60 in

Product Information

TCI HSD Series

TCI is known in the electrical industry for power quality equipment, ranging from input to output filters. TCI harmonic filters help to prolong the life of your electrical equipment. They are a key part of achieving IEEE 519 and utility compliance.

Standard Features

  • HSD HarmonicShield Passive Harmoinc Filter
  • Options for advanced controls and communications
Download Brochure
Download Manual
Download Drawing
