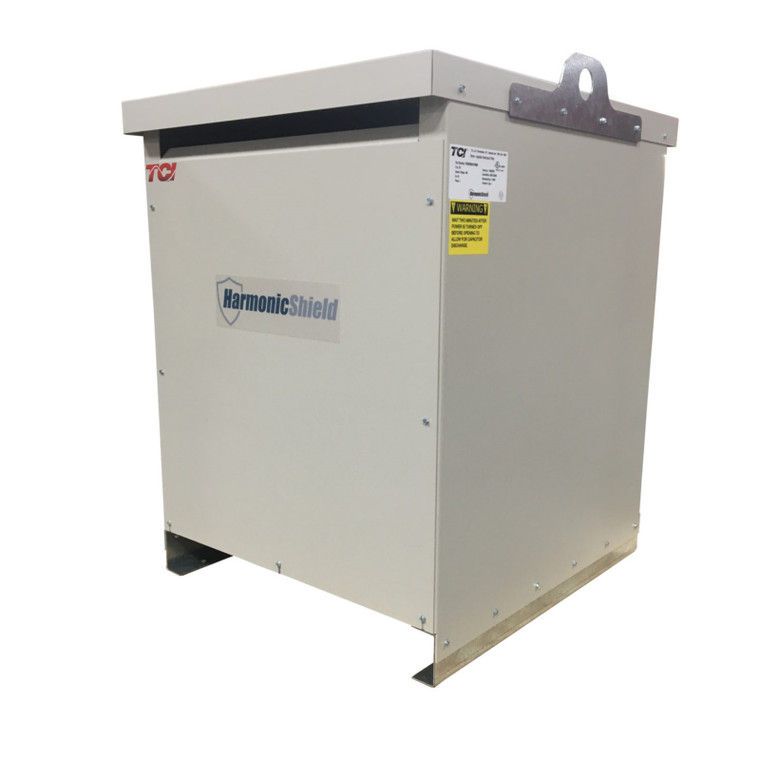

TCI HSD Harmonic Filter, 300HP, 405A, 480V, NEMA 1, w/ Contactor (HSD0300AW11010)

TCI HSD Harmonic Filter, 300HP, 405A, 480V, NEMA 1, w/ Contactor (HSD0300AW11010)

Brand:
TCI
Model:
HSD0300AW11010
Condition:
New
0 Customer Reviews
VFDs.com Guarantee Badge
Out Of Stock
Call for Price
Adding to cart… The item has been added

TCI harmonic filters help to lower the harmonic distortion caused by VFDs. They help to bring compliance and prevent electrical component damage.

HSD0300AW11010

  • 300 Horsepower
  • 405 Amps
  • 480 Volt
  • NEMA 1
Write a Review

Technical Specifications

Series:
HSD
Model:
HSD0300AW11010
Brand:
TCI
Product Condition:
New
Rated Voltage:
480 V
Rated Amps:
405 A
Phase:
Three Phase
Enclosure Rating:
NEMA 1
Heat Loss:
2100 W
Horsepower Rating:
300 HP
Height:
60.20 in
Width:
36.70 in
Depth:
39.60 in

Product Information

TCI HSD Series

TCI is known in the electrical industry for power quality equipment, ranging from input to output filters. TCI harmonic filters help to prolong the life of your electrical equipment. They are a key part of achieving IEEE 519 and utility compliance.

Standard Features

  • HSD HarmonicShield Passive Harmoinc Filter
  • Options for advanced controls and communications
Download Brochure
Download Manual
Download Drawing
