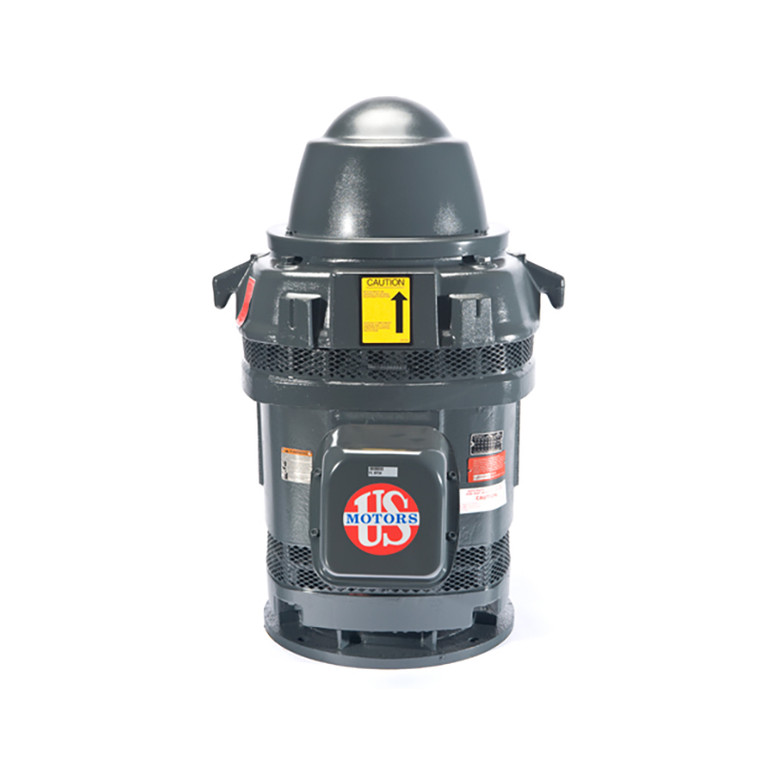

US Motors (Nidec), AC Motor, HO7P2BLE, 7.5 HP, 1800 RPM, Three Phase, 230/460 V, 60 Hz, 213TP (HO7P2BLE)

US Motors (Nidec), AC Motor, HO7P2BLE, 7.5 HP, 1800 RPM, Three Phase, 230/460 V, 60 Hz, 213TP (HO7P2BLE)

Brand:
US Motors (Nidec)
Model:
HO7P2BLE
Condition:
New
0 Customer Reviews
VFDs.com Guarantee Badge
Out Of Stock
Call for Price
Adding to cart… The item has been added
Write a Review

Technical Specifications

Model:
HO7P2BLE
Brand:
US Motors (Nidec)
Product Condition:
New
Horsepower Rating:
7.5 HP
Synchronous RPM:
1800 RPM
Rated RPM:
1765 RPM
Frame Size:
213TP
Rated Supply Voltage:
230/460 V
Motor Enclosure Type:
Weather Protected I (WP1)
Motor Design Class:
B
Full Load Torque:
22.3
Rated Voltage:
230 V
Rated Voltage:
460 V
Phase:
Three Phase
Service Factor:
1.15
Insulation Class:
F
Duty Cycle:
Continuous
Efficiency:
91.7%
C Dimension:
21.2
Bearing Type:
6208-2Z-J/C3
Rated Input Frequency:
60 Hz
Motor Full Load Amps:
17.9/9 A

Product Information

US Motors (Nidec) Series

7 1/2 HP, 1765 RPM, HO7P2BLE, 230/460 V, 60 HZ, 213TP
