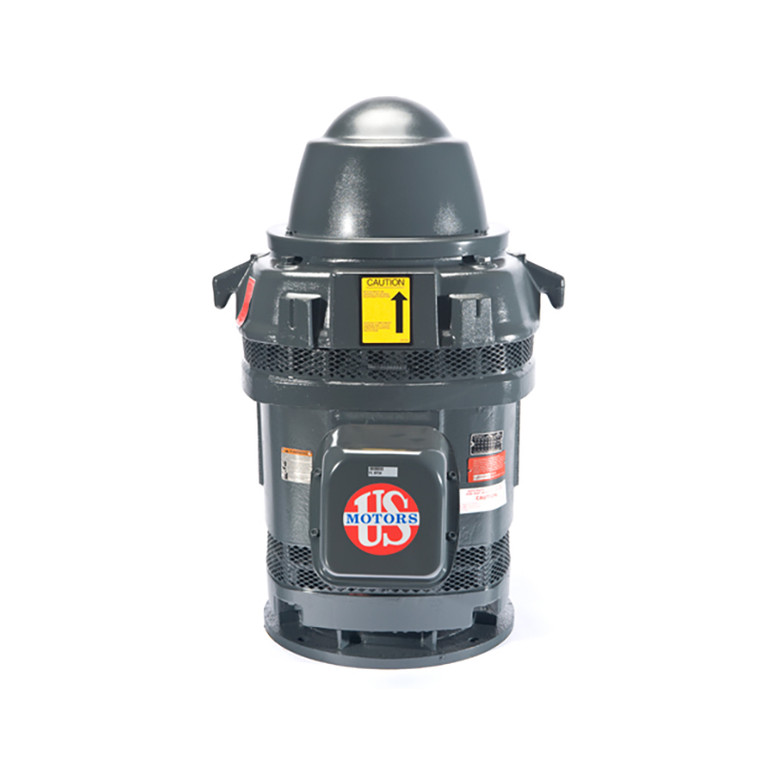

US Motors (Nidec), AC Motor, HO75P3SLGX, 75 HP, 1200 RPM, Three Phase, 460 V, 60 Hz, 405TP (HO75P3SLGX)

US Motors (Nidec), AC Motor, HO75P3SLGX, 75 HP, 1200 RPM, Three Phase, 460 V, 60 Hz, 405TP (HO75P3SLGX)

Brand:
US Motors (Nidec)
Model:
HO75P3SLGX
Condition:
New
0 Customer Reviews
VFDs.com Guarantee Badge
Out Of Stock
Call for Price
Adding to cart… The item has been added
Write a Review

Technical Specifications

Model:
HO75P3SLGX
Brand:
US Motors (Nidec)
Product Condition:
New
Horsepower Rating:
75 HP
Synchronous RPM:
1200 RPM
Rated RPM:
1190 RPM
Frame Size:
405TP
Rated Supply Voltage:
460 V
Motor Enclosure Type:
Weather Protected I (WP1)
Motor Design Class:
B
Full Load Torque:
331.2
Rated Voltage:
460 V
Phase:
Three Phase
Service Factor:
1.15
Insulation Class:
F
Duty Cycle:
Continuous
Efficiency:
94.5%
C Dimension:
42.6
Bearing Type:
6212-J
Rated Input Frequency:
60 Hz
Motor Full Load Amps:
87 A

Product Information

US Motors (Nidec) Series

75 HP, 1190 RPM, HO75P3SLGX, 460 V, 60 HZ, 405TP
