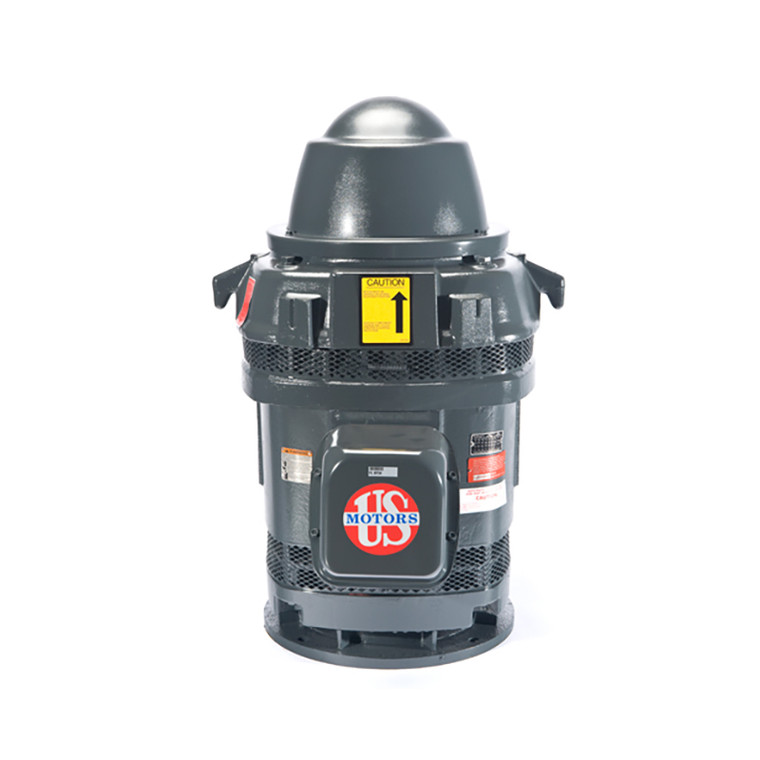

US Motors (Nidec), AC Motor, HO60P1SLG, 60 HP, 3600 RPM, Three Phase, 460 V, 60 Hz, 326TP (HO60P1SLG)

US Motors (Nidec), AC Motor, HO60P1SLG, 60 HP, 3600 RPM, Three Phase, 460 V, 60 Hz, 326TP (HO60P1SLG)

Brand:
US Motors (Nidec)
Model:
HO60P1SLG
Condition:
New
0 Customer Reviews
VFDs.com Guarantee Badge
Out Of Stock
Call for Price
Adding to cart… The item has been added
Write a Review

Technical Specifications

Model:
HO60P1SLG
Brand:
US Motors (Nidec)
Product Condition:
New
Horsepower Rating:
60 HP
Synchronous RPM:
3600 RPM
Rated RPM:
3570 RPM
Frame Size:
326TP
Rated Supply Voltage:
460 V
Motor Enclosure Type:
Weather Protected I (WP1)
Motor Design Class:
A
Full Load Torque:
88.3
Rated Voltage:
460 V
Phase:
Three Phase
Service Factor:
1.15
Insulation Class:
F
Duty Cycle:
Continuous
Efficiency:
93.6%
Construction:
Cast Iron
C Dimension:
33
Bearing Type:
6211-J
Rated Input Frequency:
60 Hz
Motor Full Load Amps:
72 A

Product Information

US Motors (Nidec) Series

60 HP, 3570 RPM, HO60P1SLG, 460 V, 60 HZ, 326TP
