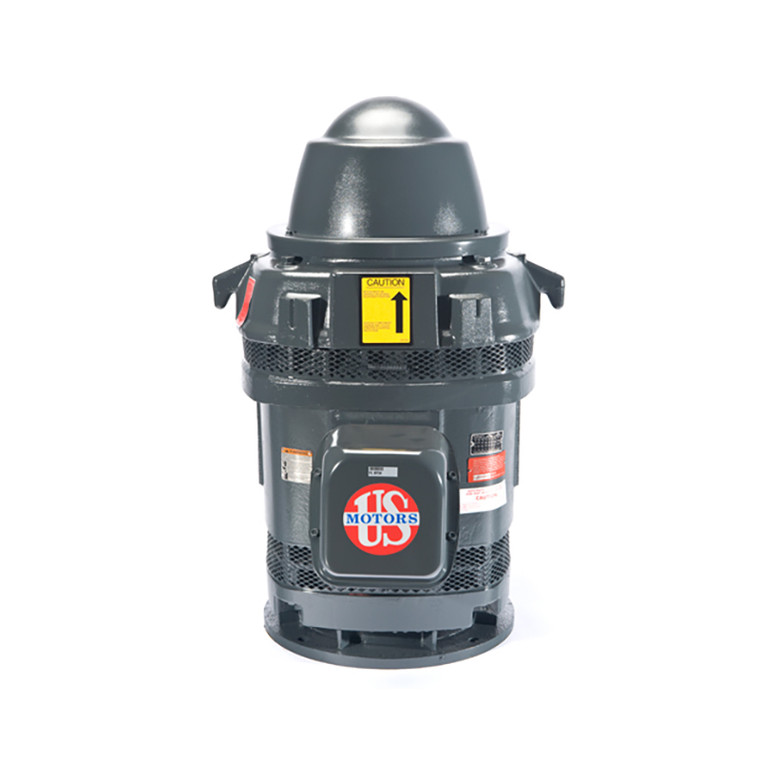

US Motors (Nidec), AC Motor, HO500P2SLHX, 500 HP, 1800 RPM, Three Phase, 460 V, 60 Hz, 5008PH (HO500P2SLHX)

US Motors (Nidec), AC Motor, HO500P2SLHX, 500 HP, 1800 RPM, Three Phase, 460 V, 60 Hz, 5008PH (HO500P2SLHX)

Brand:
US Motors (Nidec)
Model:
HO500P2SLHX
Condition:
New
0 Customer Reviews
VFDs.com Guarantee Badge
Out Of Stock
Call for Price
Adding to cart… The item has been added
Write a Review

Technical Specifications

Model:
HO500P2SLHX
Brand:
US Motors (Nidec)
Product Condition:
New
Horsepower Rating:
500 HP
Synchronous RPM:
1800 RPM
Rated RPM:
1785 RPM
Frame Size:
5008PH
Rated Supply Voltage:
460 V
Motor Enclosure Type:
Weather Protected I (WP1)
Motor Design Class:
B
Full Load Torque:
1472.7
Rated Voltage:
460 V
Phase:
Three Phase
Service Factor:
1.15
Insulation Class:
F
Duty Cycle:
Continuous
Efficiency:
96.2%
Construction:
Cast Iron
Bearing Type:
6219-J/C3
Rated Input Frequency:
60 Hz
Motor Full Load Amps:
541 A

Product Information

US Motors (Nidec) Series

500 HP, 1785 RPM, HO500P2SLHX, 460 V, 60 HZ, 5008PH
