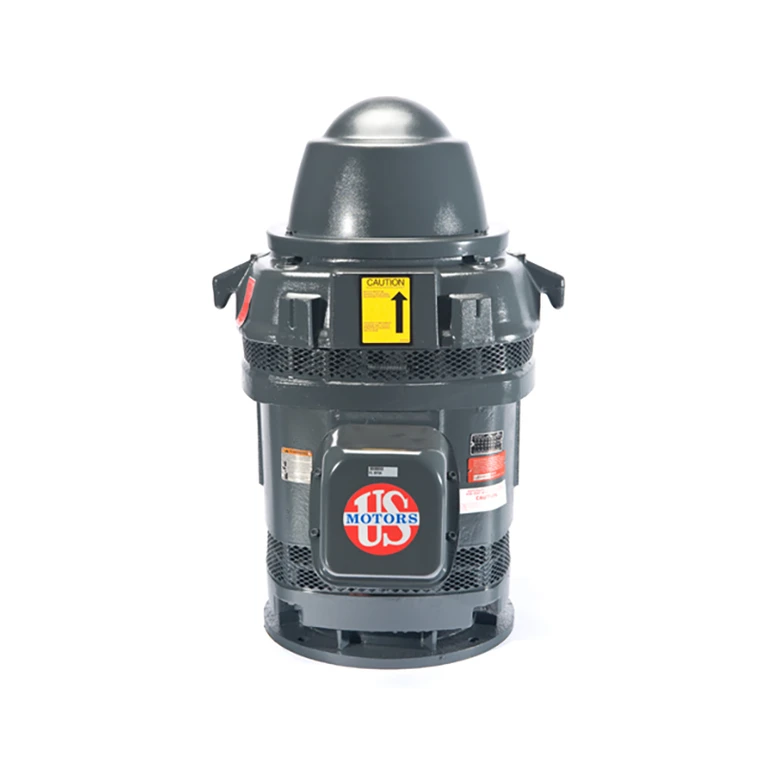

US Motors (Nidec), AC Motor, HO40V2BLF, 40 HP, 1800 RPM, Three Phase, 230/460 V, 60 Hz, 324TPH (HO40V2BLF)

US Motors (Nidec), AC Motor, HO40V2BLF, 40 HP, 1800 RPM, Three Phase, 230/460 V, 60 Hz, 324TPH (HO40V2BLF)

Brand:
US Motors (Nidec)
Model:
HO40V2BLF
Condition:
New
0 Customer Reviews
VFDs.com Guarantee Badge
Out Of Stock
Call for Price
Adding to cart… The item has been added
Write a Review

Technical Specifications

Model:
HO40V2BLF
Brand:
US Motors (Nidec)
Product Condition:
New
Horsepower Rating:
40 HP
Synchronous RPM:
1800 RPM
Rated RPM:
1780 RPM
Frame Size:
324TPH
Rated Supply Voltage:
230/460 V
Motor Enclosure Type:
Weather Protected I (WP1)
Motor Design Class:
B
Full Load Torque:
117.9
Rated Voltage:
230 V
Rated Voltage:
460 V
Phase:
Three Phase
Service Factor:
1.15
Insulation Class:
F
Duty Cycle:
Continuous
Efficiency:
94.5%
Bearing Type:
6211-J
Rated Input Frequency:
60 Hz
Motor Full Load Amps:
91/45 A

Product Information

US Motors (Nidec) Series

40 HP, 1780 RPM, HO40V2BLF, 230/460 V, 60 HZ, 324TPH
