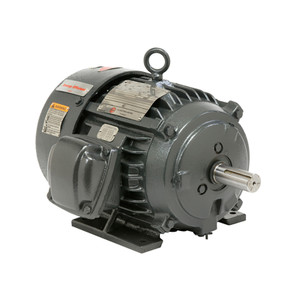

US Motors (Nidec), AC Motor, HDA40P2GS, 40 HP, 1800 RPM, Three Phase, 575 V, 60 Hz, 324TS (HDA40P2GS)

US Motors (Nidec), AC Motor, HDA40P2GS, 40 HP, 1800 RPM, Three Phase, 575 V, 60 Hz, 324TS (HDA40P2GS)

Brand:
US Motors (Nidec)
Model:
HDA40P2GS
Condition:
New
0 Customer Reviews
VFDs.com Guarantee Badge
Out Of Stock
Call for Price
Adding to cart… The item has been added
Write a Review

Technical Specifications

Product Information

US Motors (Nidec) Series

40 HP, 1780 RPM, HDA40P2GS, 575 V, 60 HZ, 324TS
Download Brochure
Download Manual

World Motor Hostile Duty

APPLICATIONS:

For pulp & paper plants, saw mills, mines, foundries, chemical plants, waste management facilities, and other process-related industries requiring

protection within harsh operating conditions.

FEATURES:

  • Class F Insulation, Class B Rise At Full Load On 60 Hertz Sine Wave Power
  • Corrosion Resistant Mill & Chemical Duty Paint
  • Cast Iron Frame, Cast Iron End Brackets
  • Stainless Steel Nameplate (with CE Mark) & Zinc Plated Hardware
  • IP54 Protection
  • Dual Voltage 230/460 Volts (1-100 HP)
  • 40°C Ambient, NEMA®† Design B Performance On 60 Hz Sine Wave Power
  • Regreasable Ball Bearings 250 Frame & Up, Lifting Provisions
  • Double Shielded Bearings 140-360, Open On 400-440
  • Pulley End Clamping Plate
  • 1.15 Service Factor @ 60 Hz
  • Suitable for 20:1 (3-60hz) Variable Torque; 5:1 (12-60hz) Constant Torque On Inverter Power
  • Steel Fan Cover & Conduit Box
  • Field Convertible To F2 Mounting
  • Condensation Drains With Plastic Plugs
  • Conversion Kits: All Cast Iron Upgrade, C&D Flanges, Canopy Kits
  • Self-Certified Class I, Division 2, Groups A, B, C, & D
