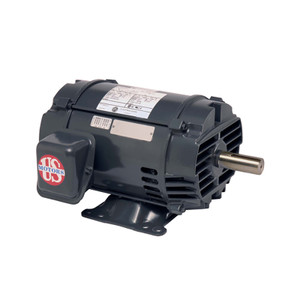

US Motors (Nidec), AC Motor, H40P1HS, 40 HP, 3600 RPM, Three Phase, 200 V, 60 Hz, 324TS (H40P1HS)

US Motors (Nidec), AC Motor, H40P1HS, 40 HP, 3600 RPM, Three Phase, 200 V, 60 Hz, 324TS (H40P1HS)

Brand:
US Motors (Nidec)
Model:
H40P1HS
Condition:
New
0 Customer Reviews
VFDs.com Guarantee Badge
Out Of Stock
Call for Price
Adding to cart… The item has been added
Write a Review

Technical Specifications

Product Information

US Motors (Nidec) Series

40 HP, 3560 RPM, H40P1HS, 200 V, 60 HZ, 324TS
Download Brochure
Download Manual

Hostile Duty Motors

APPLICATIONS:

For pulp & paper plants, saw mills, mines, foundries, chemical plants, waste management facilities, and other process-related industries requiring protection within harsh operating conditions.

FEATURES:

  • Class F Insulation, Class B Rise At Full Load On 60 Hertz Sine Wave Power
  • Cast Iron Frame (140: Rolled Steel), Cast Iron End Brackets
  • Stainless Steel Nameplate (with CE Mark) & Zinc Plated Hardware
  • Shaft Slinger On Pulley End For IP54 Protection
  • Dual Voltage 230/460 Volts (1-100 HP)
  • 40°C Ambient, NEMA®† Design B Performance On 60 Hz Sine Wave Power
  • Regreasable Ball Bearings 250 Frame & Up, Lifting Provisions 180 Frame & Up
  • Double Shielded Bearings 140-360, Open On 400-440
  • 1 .15 Service Factor @ 60 Hz
  • Steel Fan Cover & Conduit Box
  • Field Convertible To F2 Mounting 180 Frame & Larger
  • Condensation Drains With Plastic Plugs

• Conversion Kits: All Cast Iron Upgrade, C&D Flanges, Canopy Kits (except 320-360)
