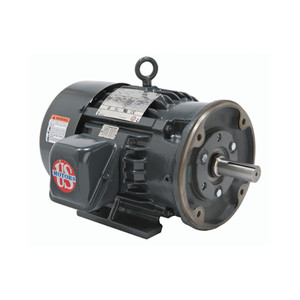

US Motors (Nidec), AC Motor, H3P1D, 3 HP, 3600 RPM, Three Phase, 208-230/460 & 190/380 V, 60 , 50 Hz, 182T (H3P1D)

US Motors (Nidec), AC Motor, H3P1D, 3 HP, 3600 RPM, Three Phase, 208-230/460 & 190/380 V, 60 , 50 Hz, 182T (H3P1D)

Brand:
US Motors (Nidec)
Model:
H3P1D
Condition:
New
0 Customer Reviews
VFDs.com Guarantee Badge
Out Of Stock
Call for Price
Adding to cart… The item has been added
Write a Review

Technical Specifications

Product Information

US Motors (Nidec) Series

3 HP, 3540 & 2920 RPM, H3P1D, 208-230/460 & 190/380 V, 60 & 50 HZ, 182T
Download Brochure
Download Manual

Hostile Duty Motors

APPLICATIONS:

For pulp & paper plants, saw mills, mines, foundries, chemical plants, waste management facilities, and other process-related industries requiring protection within harsh operating conditions.

FEATURES:

  • Class F Insulation, Class B Rise At Full Load On 60 Hertz Sine Wave Power
  • Cast Iron Frame (140: Rolled Steel), Cast Iron End Brackets
  • Stainless Steel Nameplate (with CE Mark) & Zinc Plated Hardware
  • Shaft Slinger On Pulley End For IP54 Protection
  • Dual Voltage 230/460 Volts (1-100 HP)
  • 40°C Ambient, NEMA®† Design B Performance On 60 Hz Sine Wave Power
  • Regreasable Ball Bearings 250 Frame & Up, Lifting Provisions 180 Frame & Up
  • Double Shielded Bearings 140-360, Open On 400-440
  • 1 .15 Service Factor @ 60 Hz
  • Steel Fan Cover & Conduit Box
  • Field Convertible To F2 Mounting 180 Frame & Larger
  • Condensation Drains With Plastic Plugs

• Conversion Kits: All Cast Iron Upgrade, C&D Flanges, Canopy Kits (except 320-360)
