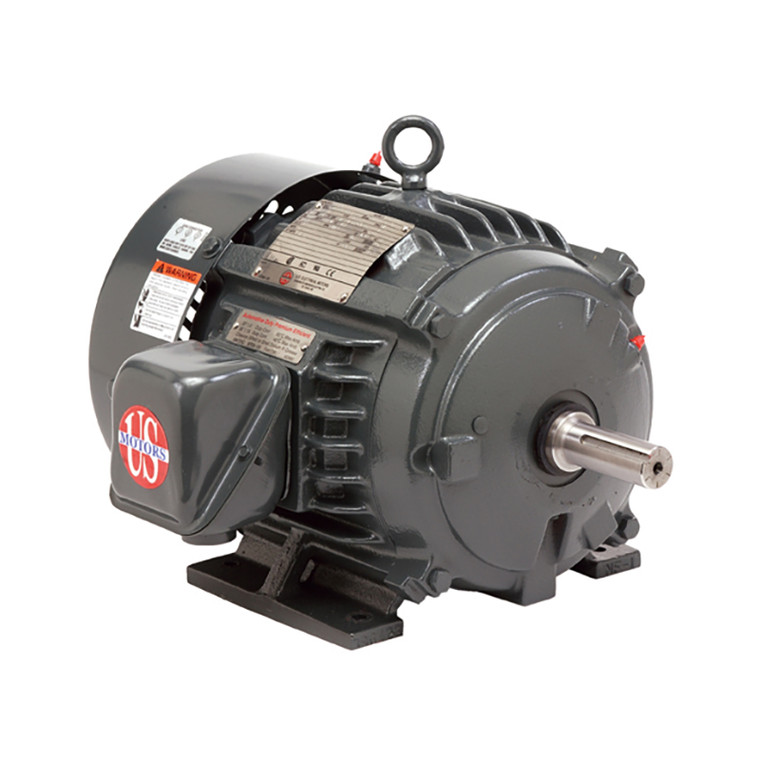

US Motors (Nidec) AC Motor 2 HP, 1200 RPM, Three Phase, 575 V, 60 Hz, 184T (HD2P3G)
List Price:
$755.00
Online Price:
Call for Price
US Motors (Nidec), AC Motor, H2P3G, 2 HP, 1200 RPM, Three Phase, 575 V, 60 Hz, 184T (H2P3G)
0 Customer Reviews
Write a Review
US Motors (Nidec)
US Motors (Nidec), AC Motor, H2P3G, 2 HP, 1200 RPM, Three Phase, 575 V, 60 Hz, 184T (H2P3G)
Technical Specifications
Product Information
US Motors (Nidec) Series
2 HP, 1175 RPM, H2P3G, 575 V, 60 HZ, 184TAPPLICATIONS:
For pulp & paper plants, saw mills, mines, foundries, chemical plants, waste management facilities, and other process-related industries requiring protection within harsh operating conditions.
FEATURES:
- Class F Insulation, Class B Rise At Full Load On 60 Hertz Sine Wave Power
- Cast Iron Frame (140: Rolled Steel), Cast Iron End Brackets
- Stainless Steel Nameplate (with CE Mark) & Zinc Plated Hardware
- Shaft Slinger On Pulley End For IP54 Protection
- Dual Voltage 230/460 Volts (1-100 HP)
- 40°C Ambient, NEMA® Design B Performance On 60 Hz Sine Wave Power
- Regreasable Ball Bearings 250 Frame & Up, Lifting Provisions 180 Frame & Up
- Double Shielded Bearings 140-360, Open On 400-440
- 1 .15 Service Factor @ 60 Hz
- Steel Fan Cover & Conduit Box
- Field Convertible To F2 Mounting 180 Frame & Larger
- Condensation Drains With Plastic Plugs
Conversion Kits: All Cast Iron Upgrade, C&D Flanges, Canopy Kits (except 320-360)
