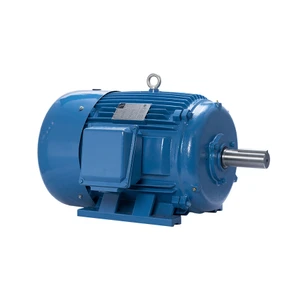

Galt Electric GPT Motor GPT0100-2-215TC-K, 10HP, 3600RPM, 3-Phase, 230, 460V, 60Hz, 213/5T (GPT0100-2-215TC-K)

Brand:
GALT ELECTRIC
Model:
GPT0100-2-215TC-K
Condition:
New
0 Customer Reviews
VFDs.com Guarantee Badge
Out Of Stock
List Price:  $1,652.92
Online Price: $826.46
Adding to cart… The item has been added
  • Better Fit and finish
  • Oversized bearings
  • Sealed bearings up to 215T size
  • Regreasable bearings from 254T and above
  • Quality castings
  • 1.25 Service factor (Up to 100 HP)
  • 1.15 Service factor (125 HP & above)
  • Double drilled feet for most ratings
  • Premium efficiency or above
  • Fully gasketed junction box (90° increment rotatable)
  • Lead support gasketing
  • C-faces available
  • Mounting in any direction
  • Inverter duty insulation system with VPI
  • AISI 4140 shaft material
  • Shaft grounding protection available
  • Standard F1 assembly (F2 available)
  • Easy to read stainless steel nameplate
Write a Review

Technical Specifications

Model:
GPT0100-2-215TC-K
Brand:
GALT ELECTRIC
Product Condition:
New
Warranty:
3 Years
Rated RPM:
3600 RPM
Ambient Tempurature Rating:
40 °C
Phase:
Three Phase
Service Factor:
1.25
Insulation Class:
F
Duty Cycle:
Continuous
Power Factor:
0.92
Efficiency:
90.2%
C Dimension:
20.4
Horsepower Rating:
10 HP
Synchronous RPM:
3600 RPM
Frame Size:
213/5T
Frame Size:
213T
Frame Size:
215T
Motor Enclosure Type:
Totally Enclosed Fan Cooled (TEFC)
Rated Voltage:
230 V
Rated Voltage:
460 V
Construction:
Cast Iron
Rated Input Frequency:
60 Hz
Rated Amps:
11.2 A
Series:
GPT

Product Information

GALT ELECTRIC GPT Series

MOTOR, 10HP, 3600RPM, TEFC, 215TC
Download Brochure
