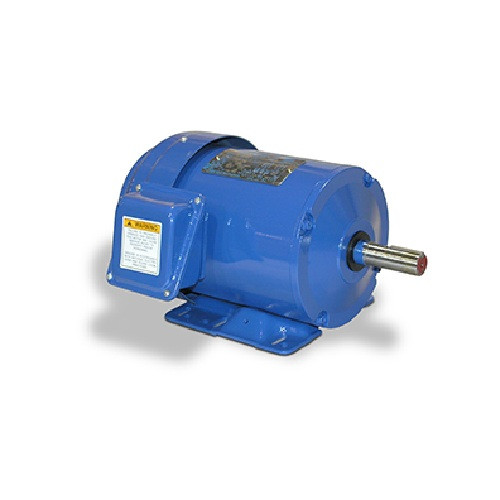

TECO GP0022G 2 HP, 3600 RPM, 208-230/460 V, TEFC, 56/143/145T Frame, Three Phase, 60/50 Hz (GP0022G)

Brand:
TECO
Model:
GP0022G
Condition:
New
0 Customer Reviews
VFDs.com Guarantee Badge
Out Of Stock
Call for Price
Adding to cart… The item has been added

TECO GP0022G:

  • 2 HP
  • 2.545 Motor FLA
  • 208-230/460 V
  • 3600 RPM
  • 56/143/145T Frame
  • Totally Enclosed Fan Cooled (TEFC)
  • Three Phase
  • 86.5% Efficiency
  • 85% Power Factor
Write a Review

Technical Specifications

Product Information

TECO Series

ROLLED STEEL TEFC NEMA PREMIUM

APPLICATIONS:

  • Fans & Blowers
  • Pumps
  • Compressors
  • HVAC Equipment

Features

FEATURES:

  • Output Range: 1/4 - 10 HP
  • Speed: 3600, 1800 & 1200 RPM
  • Enclosure: Totally Enclosed Fan Cooled (IP44)
  • Voltage: 230/460V (Usable on 200 & 208V)
  • Three Phase, 60 Hz, 1.15 Service Factor (Continuous); 50 Hz, 1.0 Service Factor (Continuous)
  • Class F Insulation
  • Class B Temperature Rise
  • NEMA Design B Torques
  • Rolled Steel Frame, Fan Cover, and Main Conduit Box
  • Grounding Terminal Inside Main Conduit Box
  • Designed for 40 C Ambient Temperature
  • Designed for 3300 ft. Elevation
  • Bi-Directional Rotation
  • 1045 Carbon Steel Shaft
  • New Dual Column Design Nameplate as Standard (60/50 Hz)
  • Suitable for Inverter Use per NEMA MG-1 Part 31.4.4.2
  • Inverter Duty Speed Range: 20:1 Variable Torque, 10:1 Constant Torque
  • Motors are U.L. Recognized for United States and Canada, CSA Approved and CE Marked
