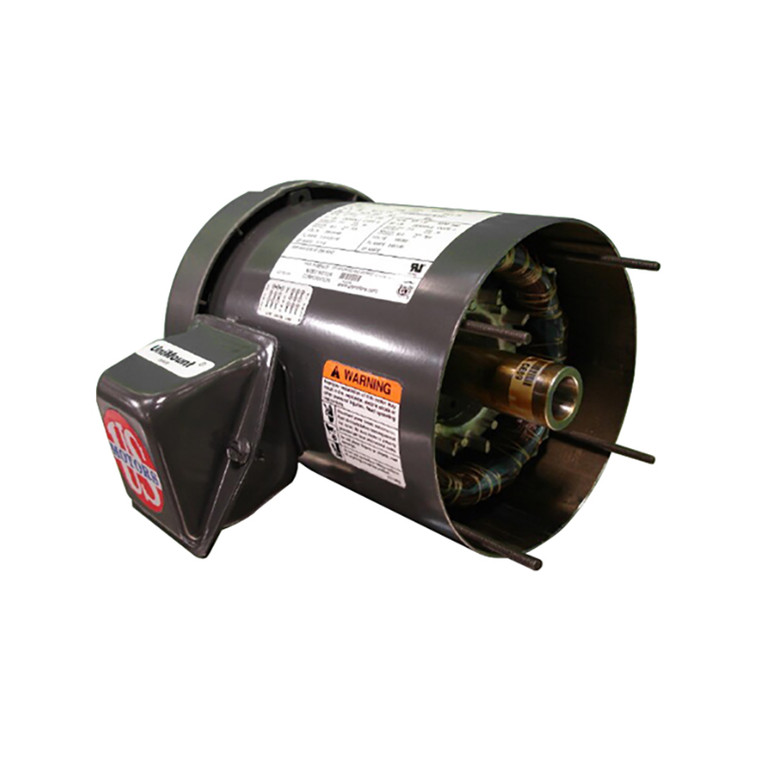

US Motors (Nidec), AC Motor, G594, 1 HP, 1800 RPM, Three Phase, 230/460 V, 60 Hz, 143T (G594)

US Motors (Nidec), AC Motor, G594, 1 HP, 1800 RPM, Three Phase, 230/460 V, 60 Hz, 143T (G594)

Brand:
US Motors (Nidec)
Model:
G594
Condition:
New
0 Customer Reviews
VFDs.com Guarantee Badge
Out Of Stock
Call for Price
Adding to cart… The item has been added
Write a Review

Technical Specifications

Model:
G594
Brand:
US Motors (Nidec)
Product Condition:
New
Horsepower Rating:
1 HP
Synchronous RPM:
1800 RPM
Rated RPM:
1755 RPM
Frame Size:
143T
Rated Supply Voltage:
230/460 V
Motor Enclosure Type:
Totally Enclosed Fan Cooled (TEFC)
Motor Design Class:
B
Full Load Torque:
3
Rated Voltage:
230 V
Rated Voltage:
460 V
Phase:
Three Phase
Service Factor:
1.25
Insulation Class:
F
Duty Cycle:
Continuous
Efficiency:
84%
Bearing Type:
-
Rated Input Frequency:
60 Hz
Motor Full Load Amps:
3.2/1.6 A

Product Information

US Motors (Nidec) Series

1 HP, 1755 RPM, G594, 230/460 V, 60 HZ, 143T
