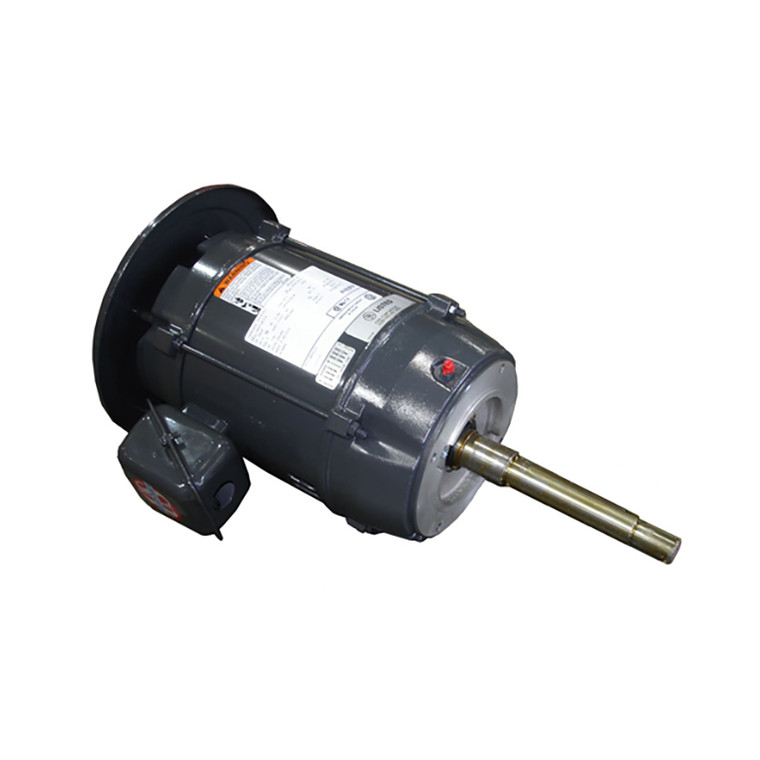

US Motors (Nidec), AC Motor, FF75E1EV, 75 , 60 HP, 3600 RPM, Three Phase, 230/460 & 190/380 V, 60 , 50 Hz, 364JP (FF75E1EV)

US Motors (Nidec), AC Motor, FF75E1EV, 75 , 60 HP, 3600 RPM, Three Phase, 230/460 & 190/380 V, 60 , 50 Hz, 364JP (FF75E1EV)

Brand:
US Motors (Nidec)
Model:
FF75E1EV
Condition:
New
0 Customer Reviews
VFDs.com Guarantee Badge
Out Of Stock
Call for Price
Adding to cart… The item has been added
Write a Review

Technical Specifications

Model:
FF75E1EV
Brand:
US Motors (Nidec)
Product Condition:
New
Motor Type:
Definite Purpose
Horsepower Rating:
60 HP
Horsepower Rating:
75 HP
Synchronous RPM:
3600 RPM
Frame Size:
364JP
Rated Supply Voltage:
230/460 & 190/380 V
Motor Enclosure Type:
Open Drip Proof (ODP)
Motor Design Class:
B
Full Load Torque:
111.1
Rated Voltage:
230 V
Rated Voltage:
380 V
Rated Voltage:
460 V
Phase:
Three Phase
Service Factor:
1.15
Insulation Class:
F
Duty Cycle:
Continuous
Efficiency:
92.4%
C Dimension:
30.5
Bearing Type:
6312-J
Rated Input Frequency:
60 Hz
Rated Input Frequency:
50 Hz
Motor Full Load Amps:
172/86 A

Product Information

US Motors (Nidec) Series

75 & 60 HP, 3545 & 2945 RPM, FF75E1EV, 230/460 & 190/380 V, 60 & 50 HZ, 364JP
