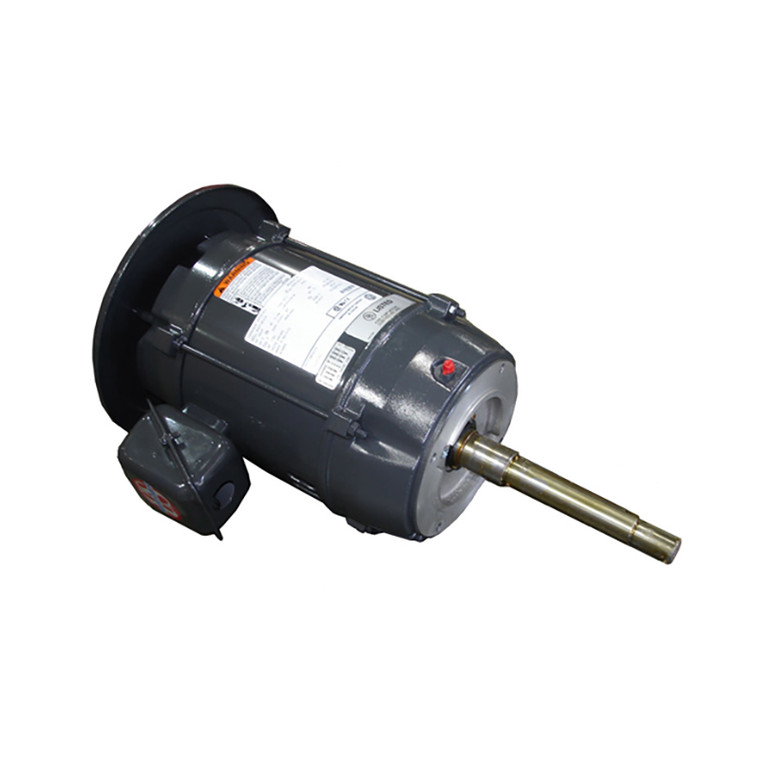

US Motors (Nidec), AC Motor, FF50E1GV, 50 HP, 3600 RPM, Three Phase, 575 V, 60 Hz, 324JP (FF50E1GV)

Brand:
US Motors (Nidec)
Model:
FF50E1GV
Condition:
New
0 Customer Reviews
Out Of Stock
Adding to cart… The item has been added

Technical Specifications

Model:
FF50E1GV
Brand:
US Motors (Nidec)
Product Condition:
New
Motor Type:
Definite Purpose
Horsepower Rating:
50 HP
Synchronous RPM:
3600 RPM
Rated RPM:
3560 RPM
Frame Size:
324JP
Rated Supply Voltage:
575 V
Motor Enclosure Type:
Open Drip Proof (ODP)
Motor Design Class:
B
Full Load Torque:
73.8
Rated Voltage:
575 V
Phase:
Three Phase
Service Factor:
1.15
Insulation Class:
F
Duty Cycle:
Continuous
Efficiency:
92.4%
C Dimension:
38.8
Bearing Type:
6211-2Z-J/C3
Rated Input Frequency:
60 Hz
Motor Full Load Amps:
46 A

Product Information

US Motors (Nidec) Series

50 HP, 3560 RPM, FF50E1GV, 575 V, 60 HZ, 324JP
