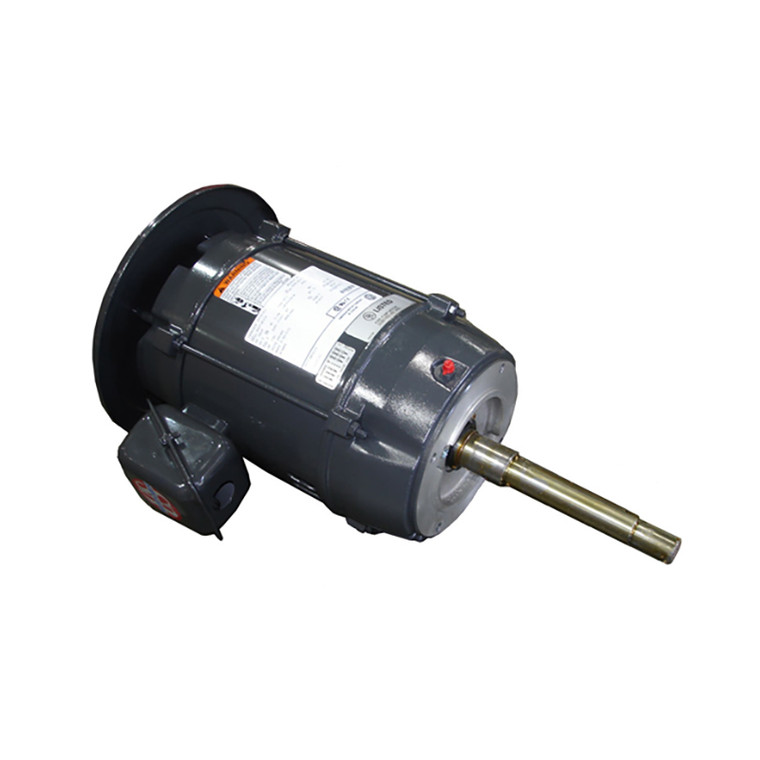

US Motors (Nidec), AC Motor, FF50E1DV, 50 , 40 HP, 3600 RPM, Three Phase, 208-230/460 & 190/380 V, 60 , 50 Hz, 324JP (FF50E1DV)

US Motors (Nidec), AC Motor, FF50E1DV, 50 , 40 HP, 3600 RPM, Three Phase, 208-230/460 & 190/380 V, 60 , 50 Hz, 324JP (FF50E1DV)

Brand:
US Motors (Nidec)
Model:
FF50E1DV
Condition:
New
0 Customer Reviews
VFDs.com Guarantee Badge
Out Of Stock
Call for Price
Adding to cart… The item has been added
Write a Review

Technical Specifications

Model:
FF50E1DV
Brand:
US Motors (Nidec)
Product Condition:
New
Motor Type:
Definite Purpose
Horsepower Rating:
40 HP
Horsepower Rating:
50 HP
Synchronous RPM:
3600 RPM
Frame Size:
324JP
Rated Supply Voltage:
208-230/460 & 190/380 V
Motor Enclosure Type:
Open Drip Proof (ODP)
Motor Design Class:
B
Full Load Torque:
73.7
Rated Voltage:
208 V
Rated Voltage:
230 V
Rated Voltage:
380 V
Rated Voltage:
460 V
Phase:
Three Phase
Service Factor:
1.15
Insulation Class:
F
Duty Cycle:
Continuous
Efficiency:
92.4%
C Dimension:
38.8
Bearing Type:
6211-2Z-J/C3
Rated Input Frequency:
60 Hz
Rated Input Frequency:
50 Hz
Motor Full Load Amps:
130-117/59 A

Product Information

US Motors (Nidec) Series

50 & 40 HP, 3565 & 2965 RPM, FF50E1DV, 208-230/460 & 190/380 V, 60 & 50 HZ, 324JP
Download Brochure
Download Manual
