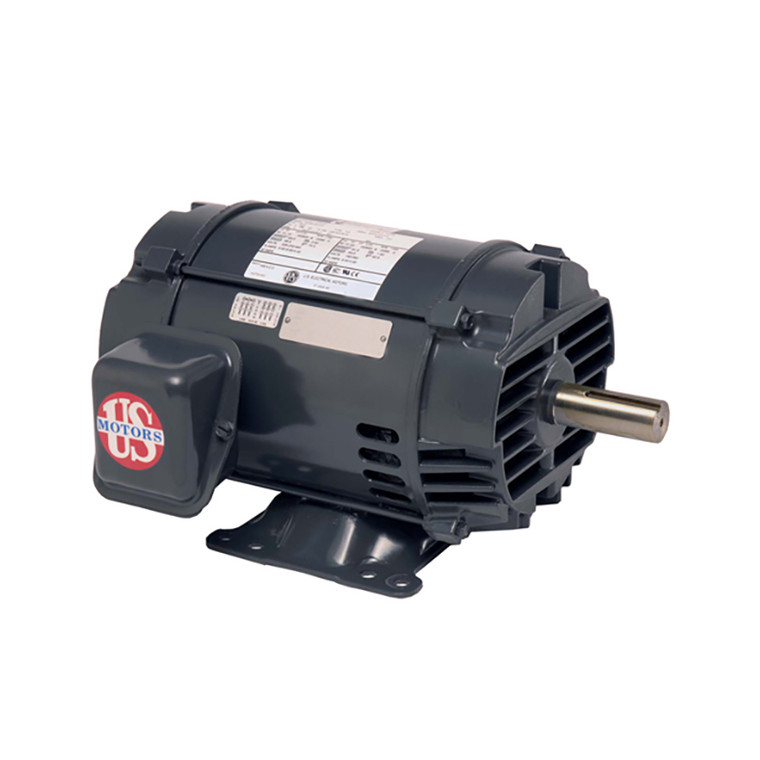

US Motors (Nidec), AC Motor, FF40E2XS, 40 HP, 1800 RPM, Three Phase, 200/400 V, 60 Hz, 324TS (FF40E2XS)

US Motors (Nidec), AC Motor, FF40E2XS, 40 HP, 1800 RPM, Three Phase, 200/400 V, 60 Hz, 324TS (FF40E2XS)

Brand:
US Motors (Nidec)
Model:
FF40E2XS
Condition:
New
0 Customer Reviews
VFDs.com Guarantee Badge
Out Of Stock
Call for Price
Adding to cart… The item has been added
Write a Review

Technical Specifications

Model:
FF40E2XS
Brand:
US Motors (Nidec)
Product Condition:
New
Motor Type:
Definite Purpose
Horsepower Rating:
40 HP
Synchronous RPM:
1800 RPM
Rated RPM:
1780 RPM
Frame Size:
324TS
Rated Supply Voltage:
200/400 V
Motor Enclosure Type:
Open Drip Proof (ODP)
Motor Design Class:
B
Full Load Torque:
118.1
Rated Voltage:
208 V
Rated Voltage:
380 V
Phase:
Three Phase
Service Factor:
1.15
Insulation Class:
F
Duty Cycle:
Continuous
Efficiency:
93.6%
C Dimension:
25.7
Bearing Type:
6211-2Z-J/C3
Rated Input Frequency:
60 Hz
Motor Full Load Amps:
105/53 A

Product Information

US Motors (Nidec) Series

40 HP, 1780 RPM, FF40E2XS, 200/400 V, 60 HZ, 324TS
