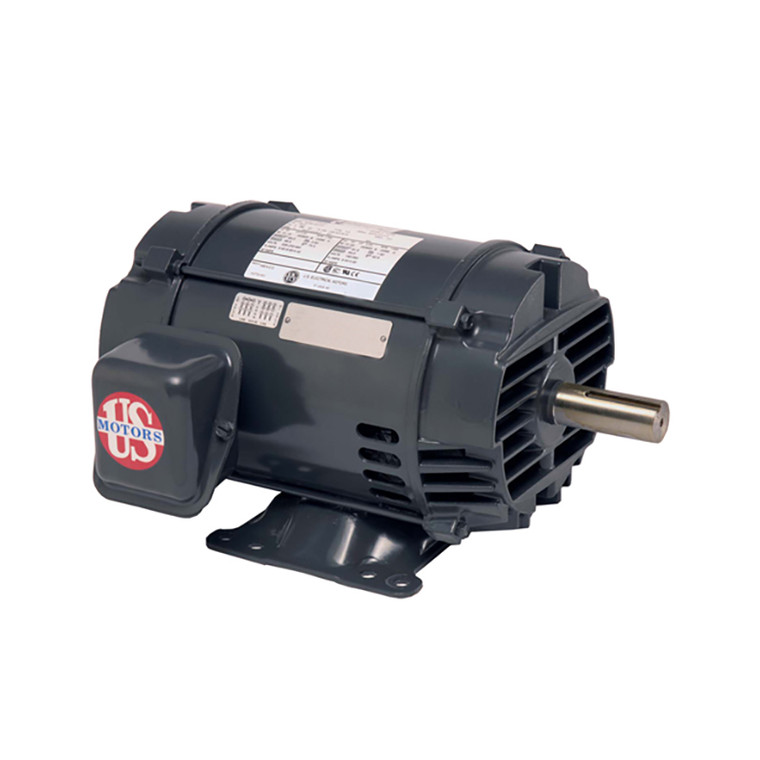

US Motors (Nidec), AC Motor, FF40E1XS, 40 HP, 3600 RPM, Three Phase, 200/400 V, 60 Hz, 286TS (FF40E1XS)

US Motors (Nidec), AC Motor, FF40E1XS, 40 HP, 3600 RPM, Three Phase, 200/400 V, 60 Hz, 286TS (FF40E1XS)

Brand:
US Motors (Nidec)
Model:
FF40E1XS
Condition:
New
0 Customer Reviews
VFDs.com Guarantee Badge
Out Of Stock
Call for Price
Adding to cart… The item has been added
Write a Review

Technical Specifications

Model:
FF40E1XS
Brand:
US Motors (Nidec)
Product Condition:
New
Motor Type:
Definite Purpose
Horsepower Rating:
40 HP
Synchronous RPM:
3600 RPM
Rated RPM:
3555 RPM
Frame Size:
286TS
Rated Supply Voltage:
200/400 V
Motor Enclosure Type:
Open Drip Proof (ODP)
Motor Design Class:
B
Full Load Torque:
59.1
Rated Voltage:
208 V
Rated Voltage:
380 V
Phase:
Three Phase
Service Factor:
1.15
Insulation Class:
F
Duty Cycle:
Continuous
Efficiency:
91.7%
C Dimension:
23.5
Bearing Type:
6210-2Z-J/C3
Rated Input Frequency:
60 Hz
Motor Full Load Amps:
106/53 A

Product Information

US Motors (Nidec) Series

40 HP, 3555 RPM, FF40E1XS, 200/400 V, 60 HZ, 286TS
Download Brochure
Download Manual
