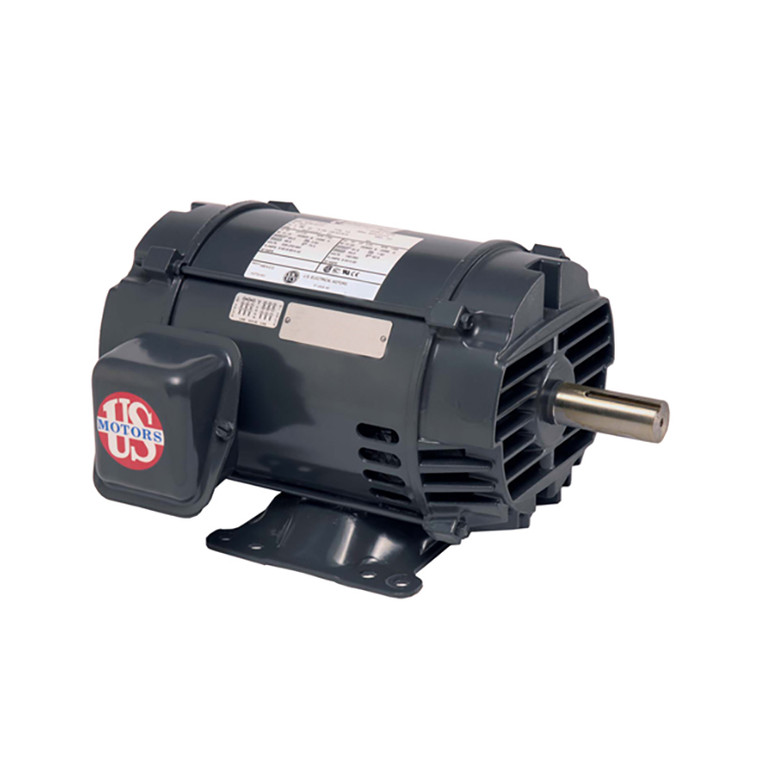

US Motors (Nidec), AC Motor, FF20E1X, 20 HP, 3600 RPM, Three Phase, 200/400 V, 60 Hz, 254T (FF20E1X)

US Motors (Nidec), AC Motor, FF20E1X, 20 HP, 3600 RPM, Three Phase, 200/400 V, 60 Hz, 254T (FF20E1X)

Brand:
US Motors (Nidec)
Model:
FF20E1X
Condition:
New
0 Customer Reviews
VFDs.com Guarantee Badge
Out Of Stock
Call for Price
Adding to cart… The item has been added
Write a Review

Technical Specifications

Model:
FF20E1X
Brand:
US Motors (Nidec)
Product Condition:
New
Motor Type:
Definite Purpose
Horsepower Rating:
20 HP
Synchronous RPM:
3600 RPM
Rated RPM:
3535 RPM
Frame Size:
254T
Rated Supply Voltage:
200/400 V
Motor Enclosure Type:
Open Drip Proof (ODP)
Motor Design Class:
B
Full Load Torque:
29.7
Rated Voltage:
208 V
Rated Voltage:
380 V
Phase:
Three Phase
Service Factor:
1.15
Insulation Class:
F
Duty Cycle:
Continuous
Efficiency:
90.2%
C Dimension:
22.5
Bearing Type:
6207-2Z-J/C3
Rated Input Frequency:
60 Hz
Motor Full Load Amps:
54/26.9 A

Product Information

US Motors (Nidec) Series

20 HP, 3535 RPM, FF20E1X, 200/400 V, 60 HZ, 254T
