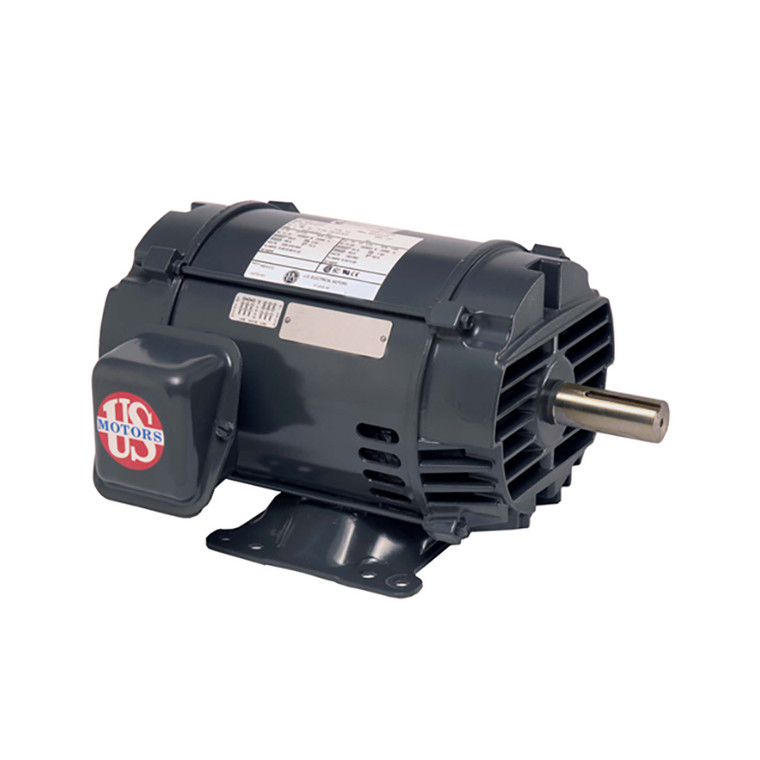

US Motors (Nidec), AC Motor, FF150E1CS, 150 , 125 HP, 3600 RPM, Three Phase, 380, 460 V, 60 , 50 Hz, 405TS (FF150E1CS)

US Motors (Nidec), AC Motor, FF150E1CS, 150 , 125 HP, 3600 RPM, Three Phase, 380, 460 V, 60 , 50 Hz, 405TS (FF150E1CS)

Brand:
US Motors (Nidec)
Model:
FF150E1CS
Condition:
New
0 Customer Reviews
VFDs.com Guarantee Badge
Out Of Stock
Call for Price
Adding to cart… The item has been added
Write a Review

Technical Specifications

Model:
FF150E1CS
Brand:
US Motors (Nidec)
Product Condition:
New
Motor Type:
Definite Purpose
Horsepower Rating:
125 HP
Horsepower Rating:
150 HP
Synchronous RPM:
3600 RPM
Frame Size:
405TS
Motor Enclosure Type:
Open Drip Proof (ODP)
Motor Design Class:
B
Full Load Torque:
221.3
Rated Voltage:
380 V
Rated Voltage:
460 V
Phase:
Three Phase
Service Factor:
1.15
Insulation Class:
F
Duty Cycle:
Continuous
Efficiency:
93.6%
C Dimension:
31
Bearing Type:
6212-2Z-J
Rated Input Frequency:
60 Hz
Rated Input Frequency:
50 Hz
Motor Full Load Amps:
165 A

Product Information

US Motors (Nidec) Series

150 & 125 HP, 3560 & 2960 RPM, FF150E1CS, 460 & 380 V, 60 & 50 HZ, 405TS
