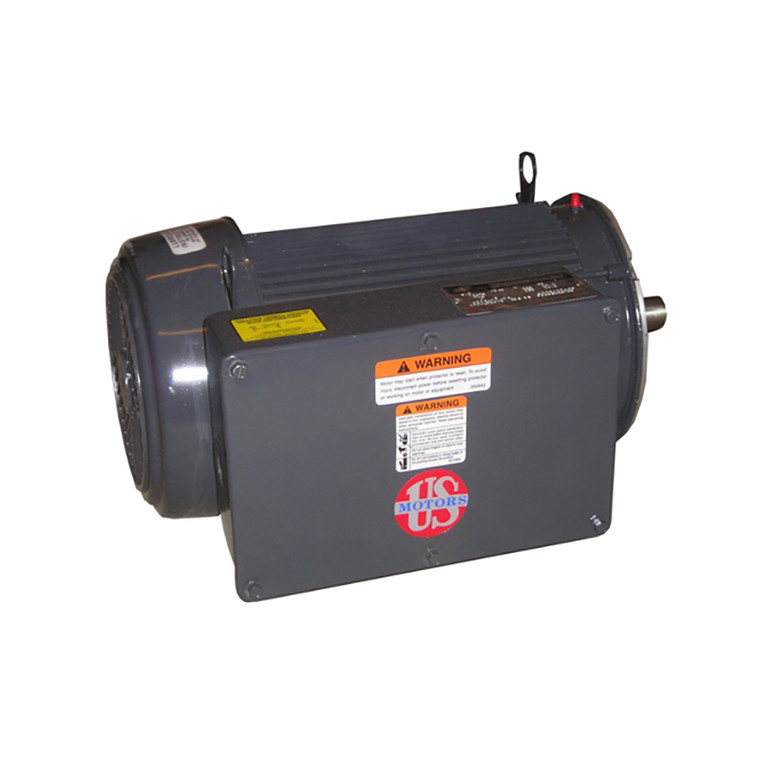

US Motors (Nidec), AC Motor, FDU2CM2P18Z, 2 HP, 1800 RPM, Single Phase, 115/230 V, 60 Hz, 182TZ (FDU2CM2P18Z)

US Motors (Nidec), AC Motor, FDU2CM2P18Z, 2 HP, 1800 RPM, Single Phase, 115/230 V, 60 Hz, 182TZ (FDU2CM2P18Z)

Brand:
US Motors (Nidec)
Model:
FDU2CM2P18Z
Condition:
New
0 Customer Reviews
VFDs.com Guarantee Badge
Out Of Stock
Call for Price
Adding to cart… The item has been added
Write a Review

Technical Specifications

Model:
FDU2CM2P18Z
Brand:
US Motors (Nidec)
Product Condition:
New
Motor Type:
General Purpose
Horsepower Rating:
2 HP
Synchronous RPM:
1800 RPM
Rated RPM:
1740 RPM
Frame Size:
182TZ
Rated Supply Voltage:
115/230 V
Motor Design Class:
L
Rated Voltage:
230 V
Rated Voltage:
115 V
Phase:
Single Phase
Service Factor:
1.15
Insulation Class:
F
Duty Cycle:
Continuous
Efficiency:
71.9%
C Dimension:
16.8
Bearing Type:
6205-2Z-J/C3
Rated Input Frequency:
60 Hz
Motor Full Load Amps:
25.6/12.8 A

Product Information

US Motors (Nidec) Series

2 HP, 1740 RPM, FDU2CM2P18Z, 115/230 V, 60 HZ, 182TZ
