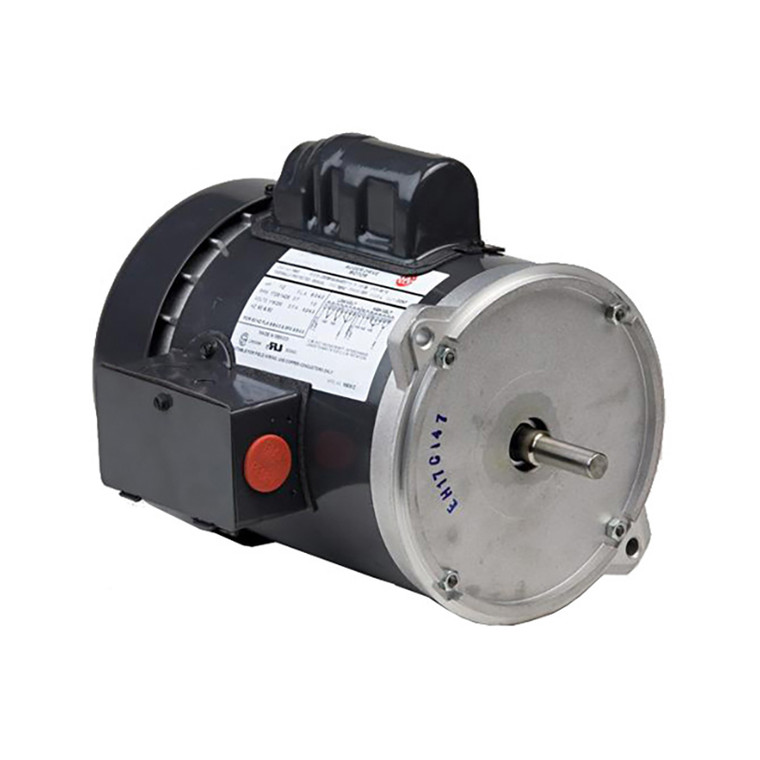

US Motors (Nidec), AC Motor, FD32PM2DZYR, 1.5 HP, 1800 RPM, Three Phase, 208-230/460 & 190/380 V, 60 , 50 Hz, 56Y (FD32PM2DZYR)

US Motors (Nidec), AC Motor, FD32PM2DZYR, 1.5 HP, 1800 RPM, Three Phase, 208-230/460 & 190/380 V, 60 , 50 Hz, 56Y (FD32PM2DZYR)

Brand:
US Motors (Nidec)
Model:
FD32PM2DZYR
Condition:
New
0 Customer Reviews
VFDs.com Guarantee Badge
Out Of Stock
Call for Price
Adding to cart… The item has been added
Write a Review

Technical Specifications

Model:
FD32PM2DZYR
Brand:
US Motors (Nidec)
Product Condition:
New
Motor Type:
General Purpose
Horsepower Rating:
1.5 HP
Synchronous RPM:
1800 RPM
Frame Size:
56Y
Rated Supply Voltage:
208-230/460 & 190/380 V
Motor Enclosure Type:
Totally Enclosed Fan Cooled (TEFC)
Rated Voltage:
208 V
Rated Voltage:
230 V
Rated Voltage:
380 V
Rated Voltage:
460 V
Phase:
Three Phase
Service Factor:
1.15
Insulation Class:
B
Duty Cycle:
Continuous
Efficiency:
86.5%
C Dimension:
13.9
Bearing Type:
6203
Rated Input Frequency:
60 Hz
Rated Input Frequency:
50 Hz
Motor Full Load Amps:
4.5-4.5/2.2& 4.5/2.2 A

Product Information

US Motors (Nidec) Series

1 1/2 HP, 1725 & 1425 RPM, FD32PM2DZYR, 208-230/460 & 190/380 V, 60 & 50 HZ, 56Y
