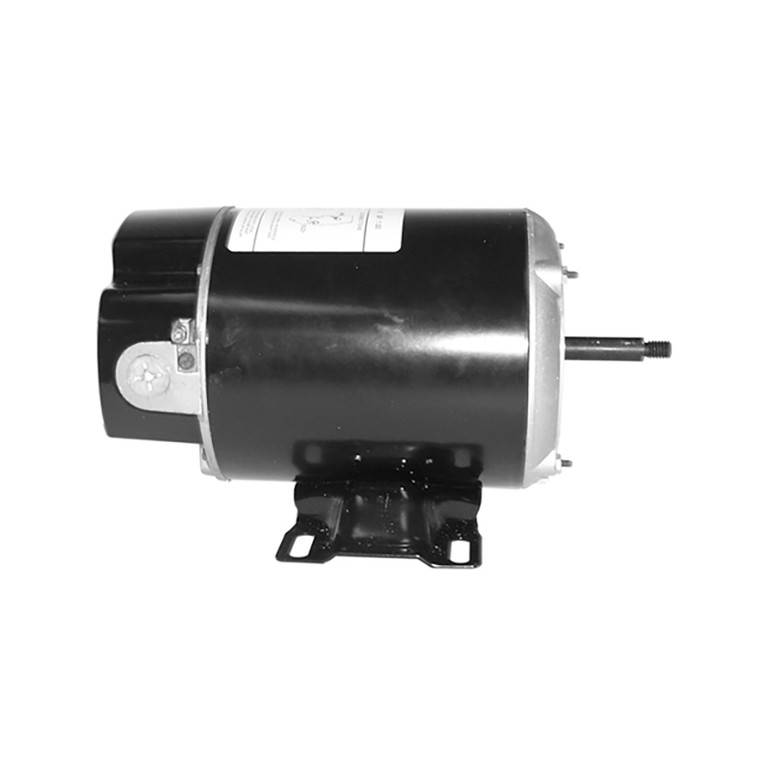

US Motors (Nidec), AC Motor, EZBN35, 1.5 HP, 3600 RPM, Single Phase, 230/115 V, 60 Hz, 48Y (EZBN35)

US Motors (Nidec), AC Motor, EZBN35, 1.5 HP, 3600 RPM, Single Phase, 230/115 V, 60 Hz, 48Y (EZBN35)

Brand:
US Motors (Nidec)
Model:
EZBN35
Condition:
New
0 Customer Reviews
VFDs.com Guarantee Badge
Out Of Stock
Call for Price
Adding to cart… The item has been added
Write a Review

Technical Specifications

Model:
EZBN35
Brand:
US Motors (Nidec)
Product Condition:
New
Motor Type:
Definite Purpose
Horsepower Rating:
1.5 HP
Synchronous RPM:
3600 RPM
Rated RPM:
3450 RPM
Frame Size:
48Y
Rated Supply Voltage:
230/115 V
Motor Enclosure Type:
Open Drip Proof (ODP)
Full Load Torque:
36.45
Rated Voltage:
230 V
Rated Voltage:
115 V
Phase:
Single Phase
Service Factor:
1
Insulation Class:
B
Duty Cycle:
Continuous
C Dimension:
9.8
Bearing Type:
BALL
Rated Input Frequency:
60 Hz
Motor Full Load Amps:
7.7/15.4 A

Product Information

US Motors (Nidec) Series

1 1/2 HP, 3450 RPM, EZBN35, 230/115 V, 60 HZ, 48Y
Download Brochure
Download Manual
