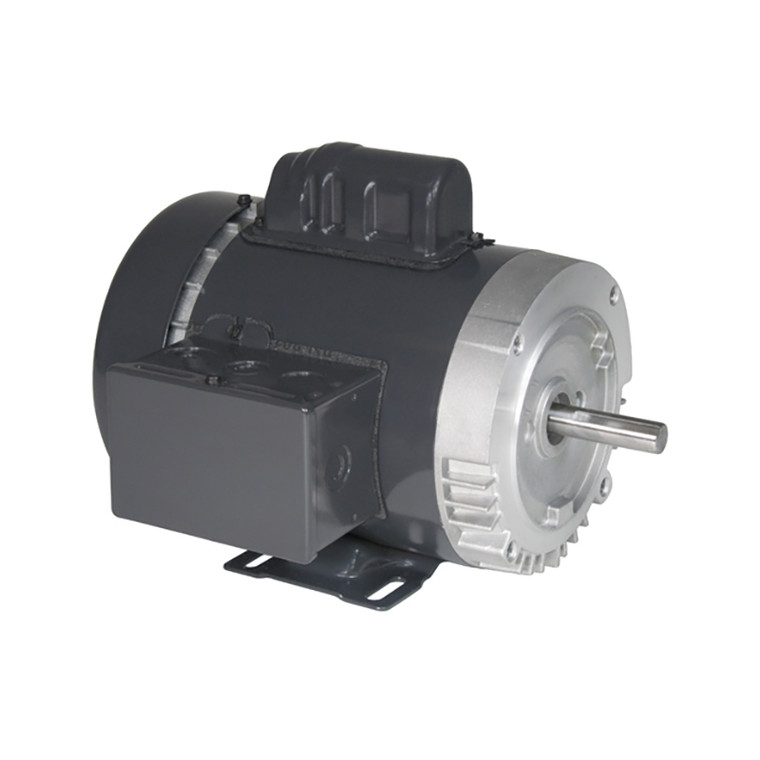

US Motors (Nidec), AC Motor, EU09, 1.5 HP, 3600 RPM, Single Phase, 115/208-230 & 110/220 V, 60 , 50 Hz, 56J (EU09)

US Motors (Nidec), AC Motor, EU09, 1.5 HP, 3600 RPM, Single Phase, 115/208-230 & 110/220 V, 60 , 50 Hz, 56J (EU09)

Brand:
US Motors (Nidec)
Model:
EU09
Condition:
New
0 Customer Reviews
VFDs.com Guarantee Badge
Out Of Stock
Call for Price
Adding to cart… The item has been added
Write a Review

Technical Specifications

Model:
C063HMF5035013J
Brand:
US Motors (Nidec)
Product Condition:
New
Horsepower Rating:
1.5 HP
Synchronous RPM:
3600 RPM
Frame Size:
56J
Rated Supply Voltage:
115/208-230 & 110/220 V
Motor Enclosure Type:
Totally Enclosed Fan Cooled (TEFC)
Full Load Torque:
36.52
Rated Voltage:
230 V
Rated Voltage:
115 V
Phase:
Single Phase
Insulation Class:
F
Duty Cycle:
Continuous
C Dimension:
13.1
Bearing Type:
6203
Rated Input Frequency:
60 Hz
Rated Input Frequency:
50 Hz
Motor Full Load Amps:
16.6/9.0-8.3 A

Product Information

US Motors (Nidec) Series

1 1/2 HP, 3450 & 2850 RPM, EU09, 115/208-230 & 110/220 V, 60 & 50 HZ, 56J
