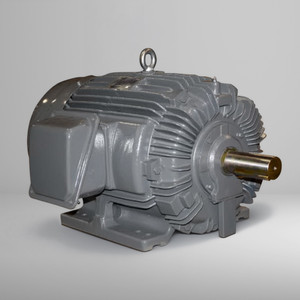

TECO EP0014C 1 HP, 1800 RPM, 208-230/460 V, TEFC, 143TC Frame, 60/50 Hz (EP0014C)

Brand:
TECO
Model:
EP0014C
Condition:
New
0 Customer Reviews
VFDs.com Guarantee Badge
Out Of Stock
Call for Price
Adding to cart… The item has been added

TECO EP0014C:

  • 1 HP
  • 1.5 Motor FLA
  • 208-230/460 V V
  • 1800 RPM
  • 143TC Frame
  • Totally Enclosed Fan Cooled (TEFC)
  • Three Phase
  • 85.5% Efficiency
  • 73% Power Factor
Write a Review

Technical Specifications

Product Information

TECO Series

MAX E1 NEMA PREMIUM EFFICIENCY SEVERE DUTY TEFC, C-FACE

APPLICATIONS:

  • Fans & Blowers
  • Pumps
  • Crushers
  • Compressors
  • Mixers
  • Conveyors
  • Any Severe Duty/ Petro-Chem/ Pulp & Paper Application

Features

FEATURES:

  • Output Range: 3/4 - 800 HP
  • Speed: 3600, 1800, 1200 & 900 RPM
  • Enclosure: Totally Enclosed Fan Cooled (IP54 for 280 Frames and below, IP55 for 280TS Frames and above)
  • Voltage: 230/460V (Usable on 208V); 150HP and Larger is 460V Only
  • Three Phase, 60 Hz, 1.15 Service Factor (Continuous); 50 Hz, 1.0 Service Factor (Continuous)
  • CSA Certified for Class I, Div. 2, Groups B, C, D
  • Temp Code T3 Minimum
  • CSA Certified for Class II, Div. 2, Groups F & G
  • Temp Code T3 Minimum (444T and Above)
  • Class F Insulation
  • Class B Temperature Rise
  • NEMA Design B Torques as a Minimum; Various Ratings also Meet Design C
  • Cast Iron Frame, End Brackets & Fan Cover and Main Conduit Box
  • Grounding Terminal Inside Main Conduit Box
  • Oversized Main Conduit Box Rotatable in 90 Degree Increments - F1 Mounted
  • Designed for 40 degrees C Ambient Temperature
  • Designed for 3300 ft. Elevation
  • Bi-Directional Rotation; Except 2 Pole "Hybrid" and F# 5000 and Larger Ratings are Counter-Clockwise facing the DE
  • 1045 Carbon Steel Shaft
  • New Dual Column Design Nameplate as Standard (60/50 Hz)
  • Suitable for Inverter Use per NEMA MG-1 Part 31.4.4.2
  • Catalog Numbers Ending in "R" Come Standard with Roller Bearings for Belted Applications.
