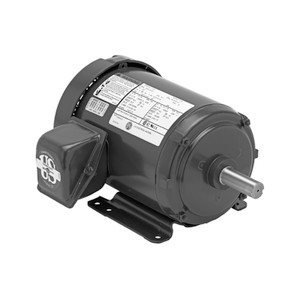

US Motors (Nidec), AC Motor, EEQK500, 5 HP, 3600 RPM, Three Phase, 208-230/460 V, 60 Hz, 182JMZ (EEQK500)

Brand:
US Motors (Nidec)
Model:
EEQK500
Condition:
New
0 Customer Reviews
VFDs.com Guarantee Badge
Out Of Stock
Call for Price
Adding to cart… The item has been added
Write a Review

Technical Specifications

Model:
EEQK500
Brand:
US Motors (Nidec)
Product Condition:
New
Motor Type:
Pool
Horsepower Rating:
5 HP
Synchronous RPM:
3600 RPM
Rated RPM:
3515 RPM
Frame Size:
182JMZ
Rated Supply Voltage:
208-230/460 V
Motor Enclosure Type:
Open Drip Proof (ODP)
Motor Design Class:
B
Full Load Torque:
7.5
Rated Voltage:
208 V
Rated Voltage:
230 V
Rated Voltage:
460 V
Phase:
Three Phase
Service Factor:
1.15
Insulation Class:
F
Duty Cycle:
Continuous
Efficiency:
89.5%
C Dimension:
16.1
Bearing Type:
6205-2Z-J/C3
Rated Input Frequency:
60 Hz
Motor Full Load Amps:
13.5-12.3/6.2 A

Product Information

US Motors (Nidec) Series

5 HP, 3515 RPM, EEQK500, 208-230/460 V, 60 HZ, 182JMZ
