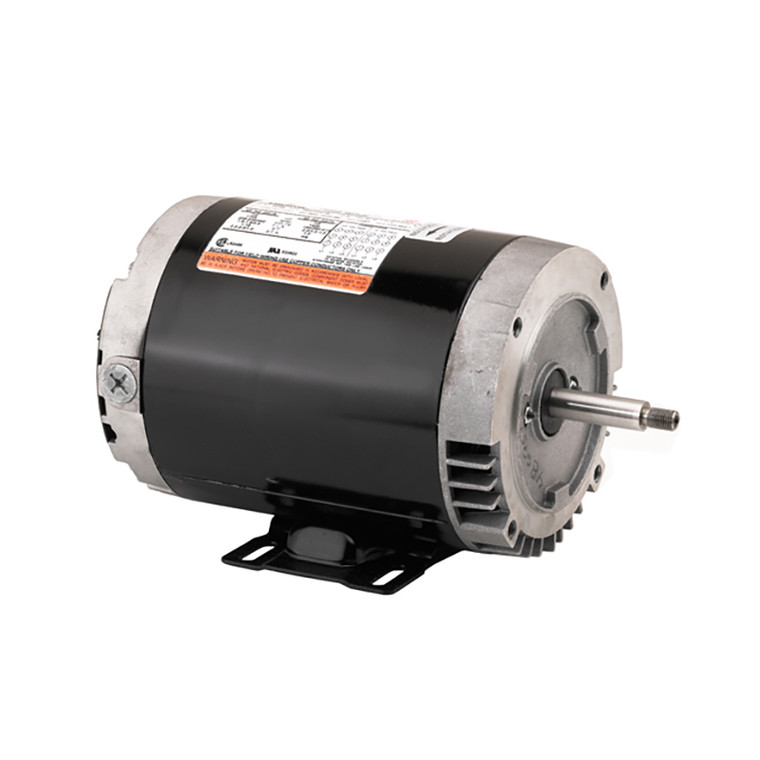

US Motors (Nidec), AC Motor, EE607, 1.5 HP, 3600 RPM, Three Phase, 208-230/460 V, 60 , 50 Hz (EE607)

Brand:
US Motors (Nidec)
Model:
EE607
Condition:
New
0 Customer Reviews
Out Of Stock
Adding to cart… The item has been added

Technical Specifications

Model:
EE607
Brand:
US Motors (Nidec)
Product Condition:
New
Motor Type:
General Purpose
Horsepower Rating:
1.5 HP
Synchronous RPM:
3600 RPM
Rated Supply Voltage:
208-230/460 V
Motor Enclosure Type:
Open Drip Proof (ODP)
Full Load Torque:
36.52
Rated Voltage:
208 V
Rated Voltage:
230 V
Rated Voltage:
460 V
Phase:
Three Phase
Service Factor:
1.3
Insulation Class:
B
Duty Cycle:
Continuous
C Dimension:
12.3
Bearing Type:
BALL
Rated Input Frequency:
60 Hz
Rated Input Frequency:
50 Hz
Motor Full Load Amps:
5.0-5.0/2.5 A

Product Information

US Motors (Nidec) Series

1 1/2 HP, 3450 & 2850 RPM, EE607, 208-230/460 V, 60 & 50 HZ,
