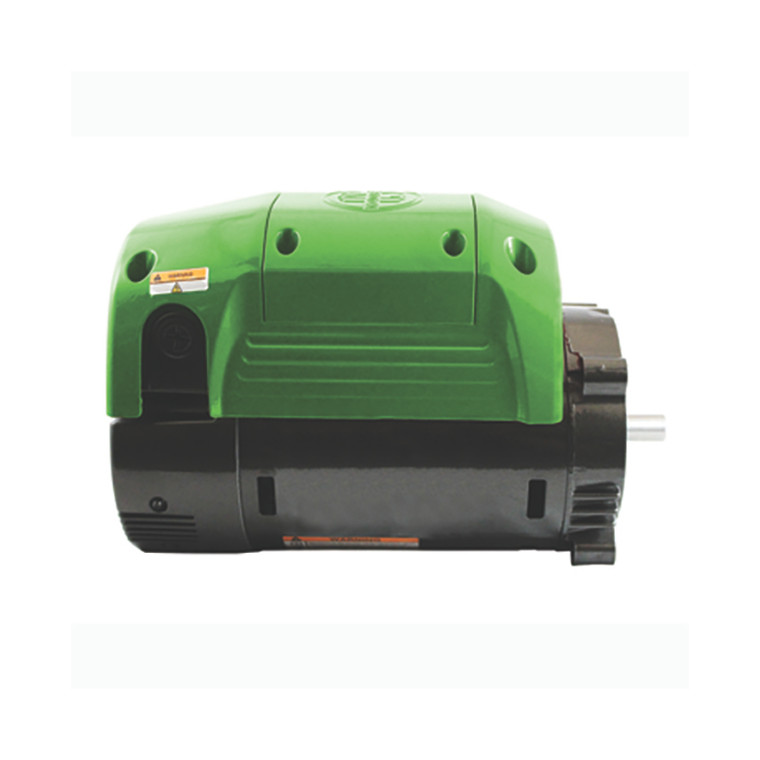

US Motors (Nidec), AC Motor, EC8330, .75 - 1 HP, 1720 RPM, Single Phase, 208-230 V, 60 , 50 Hz, 56C (EC8330)

US Motors (Nidec), AC Motor, EC8330, .75 - 1 HP, 1720 RPM, Single Phase, 208-230 V, 60 , 50 Hz, 56C (EC8330)

Brand:
US Motors (Nidec)
Model:
EC8330
Condition:
New
0 Customer Reviews
VFDs.com Guarantee Badge
Out Of Stock
Call for Price
Adding to cart… The item has been added
Write a Review

Technical Specifications

Model:
EC8330
Brand:
US Motors (Nidec)
Product Condition:
New
Motor Type:
Air Handling (HVAC)
Horsepower Rating:
0.75 HP
Rated RPM:
1720 RPM
Frame Size:
56C
Rated Supply Voltage:
208-230 V
Motor Enclosure Type:
Open Drip Proof (ODP)
Rated Voltage:
208 V
Rated Voltage:
230 V
Phase:
Single Phase
Insulation Class:
B
Duty Cycle:
Continuous
Rated Input Frequency:
60 Hz
Rated Input Frequency:
50 Hz
Motor Full Load Amps:
6.8-6.4 & 6.9-6.5 A
Synchronous RPM:
1800 RPM
Bearing Type:
BALL

Product Information

US Motors (Nidec) Series

3/4 - 1 HP, 1800 / VAR SPD, EC8330, 208-230 V, 60 & 50 HZ, 56C
