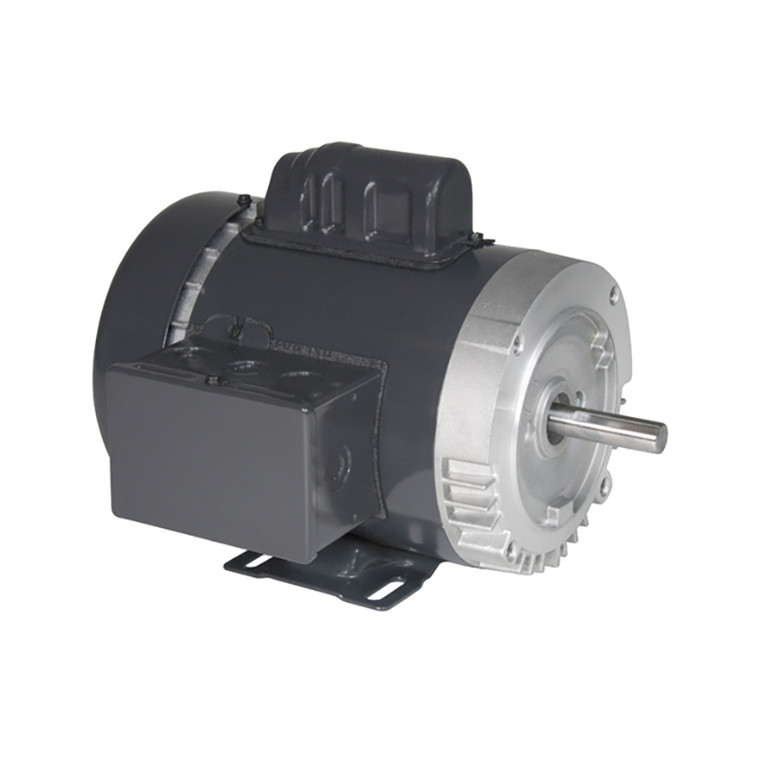

US Motors (Nidec), AC Motor, EC16B, 3 HP, 3600 RPM, Single Phase, 208-230 V, 60 Hz, 56C (EC16B)

US Motors (Nidec), AC Motor, EC16B, 3 HP, 3600 RPM, Single Phase, 208-230 V, 60 Hz, 56C (EC16B)

Brand:
US Motors (Nidec)
Model:
EC16B
Condition:
New
0 Customer Reviews
VFDs.com Guarantee Badge
Out Of Stock
Call for Price
Adding to cart… The item has been added
Write a Review

Technical Specifications

Model:
EC16B
Brand:
US Motors (Nidec)
Product Condition:
New
Motor Type:
Pump
Horsepower Rating:
3 HP
Synchronous RPM:
3600 RPM
Rated RPM:
3450 RPM
Frame Size:
56C
Rated Supply Voltage:
208-230 V
Motor Enclosure Type:
Totally Enclosed Fan Cooled (TEFC)
Full Load Torque:
83.96
Rated Voltage:
208 V
Rated Voltage:
230 V
Phase:
Single Phase
Service Factor:
1.15
Insulation Class:
F
Duty Cycle:
Continuous
C Dimension:
13.3
Bearing Type:
6203
Rated Input Frequency:
60 Hz
Motor Full Load Amps:
13.7-13.0 A

Product Information

US Motors (Nidec) Series

3 HP, 3450 RPM, EC16B, 208-230 V, 60 HZ, 56C
