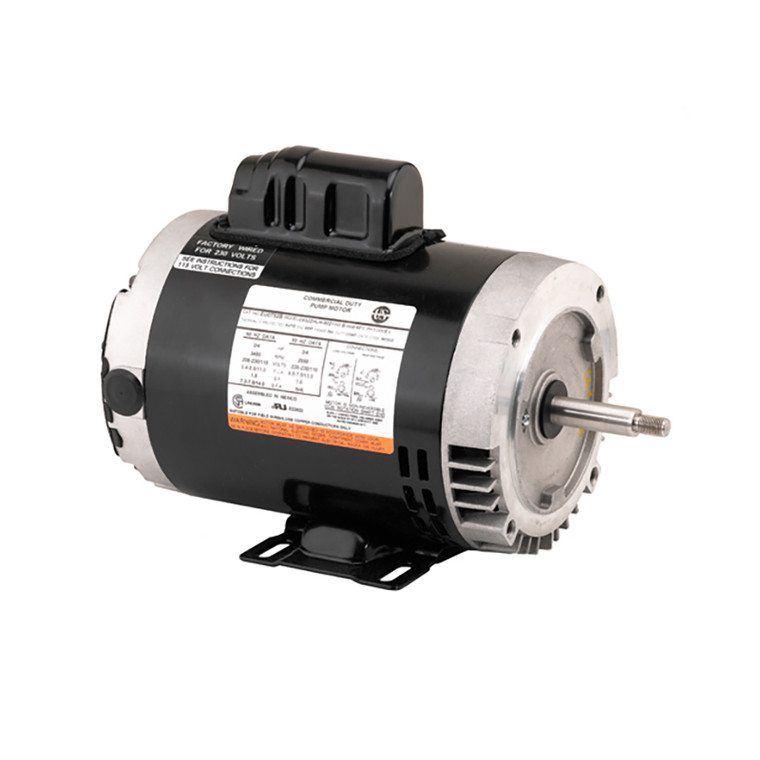

US Motors (Nidec), AC Motor, EC0504B, 0.5 HP, 1800 RPM, Single Phase, 115/208-230 V, 60 Hz, 56C (EC0504B)

US Motors (Nidec), AC Motor, EC0504B, 0.5 HP, 1800 RPM, Single Phase, 115/208-230 V, 60 Hz, 56C (EC0504B)

Brand:
US Motors (Nidec)
Model:
EC0504B
Condition:
New
0 Customer Reviews
VFDs.com Guarantee Badge
Out Of Stock
Call for Price
Adding to cart… The item has been added
Write a Review

Technical Specifications

Model:
EC0504B
Brand:
US Motors (Nidec)
Product Condition:
New
Motor Type:
General Purpose
Horsepower Rating:
0.5 HP
Synchronous RPM:
1800 RPM
Rated RPM:
1725 RPM
Frame Size:
56C
Rated Supply Voltage:
115/208-230 V
Motor Enclosure Type:
Open Drip Proof (ODP)
Full Load Torque:
24.29
Rated Voltage:
230 V
Rated Voltage:
115 V
Phase:
Single Phase
Service Factor:
1.25
Insulation Class:
B
Duty Cycle:
Continuous
C Dimension:
10.3
Bearing Type:
6203
Rated Input Frequency:
60 Hz
Motor Full Load Amps:
8.9/4.4-4.5 A

Product Information

US Motors (Nidec) Series

1/2 HP, 1725 RPM, EC0504B, 115/208-230 V, 60 HZ, 56C
Download Brochure
