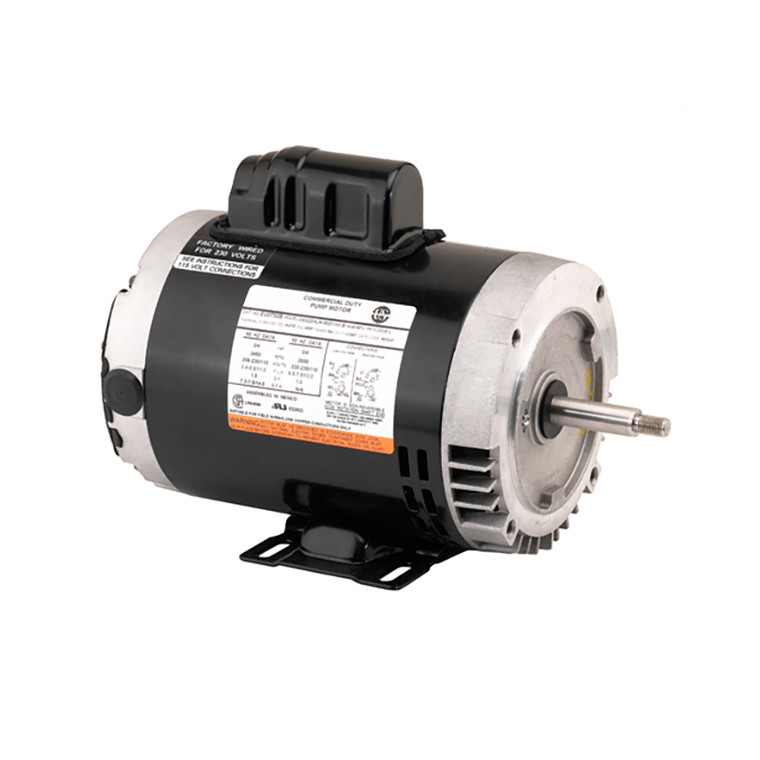

US Motors (Nidec), AC Motor, EC0502, 0.5 HP, 3600 RPM, Single Phase, 115/208-230 & 110/220 V, 60 , 50 Hz, 56C (EC0502)

US Motors (Nidec), AC Motor, EC0502, 0.5 HP, 3600 RPM, Single Phase, 115/208-230 & 110/220 V, 60 , 50 Hz, 56C (EC0502)

Brand:
US Motors (Nidec)
Model:
EC0502
Condition:
New
0 Customer Reviews
VFDs.com Guarantee Badge
Out Of Stock
Call for Price
Adding to cart… The item has been added
Write a Review

Technical Specifications

Model:
EC0502
Brand:
US Motors (Nidec)
Product Condition:
New
Motor Type:
General Purpose
Horsepower Rating:
0.5 HP
Synchronous RPM:
3600 RPM
Frame Size:
56C
Rated Supply Voltage:
115/208-230 & 110/220 V
Motor Enclosure Type:
Open Drip Proof (ODP)
Full Load Torque:
19.51
Rated Voltage:
230 V
Rated Voltage:
115 V
Phase:
Single Phase
Service Factor:
1.6
Insulation Class:
B
Duty Cycle:
Continuous
C Dimension:
11.1
Bearing Type:
BALL
Rated Input Frequency:
60 Hz
Rated Input Frequency:
50 Hz
Motor Full Load Amps:
8.2/4.2-4.1//9.8/4.9-5.2 A

Product Information

US Motors (Nidec) Series

1/2 HP, 3450 & 2850 RPM, EC0502, 115/208-230 & 110/220 V, 60 & 50 HZ, 56C
Download Brochure
