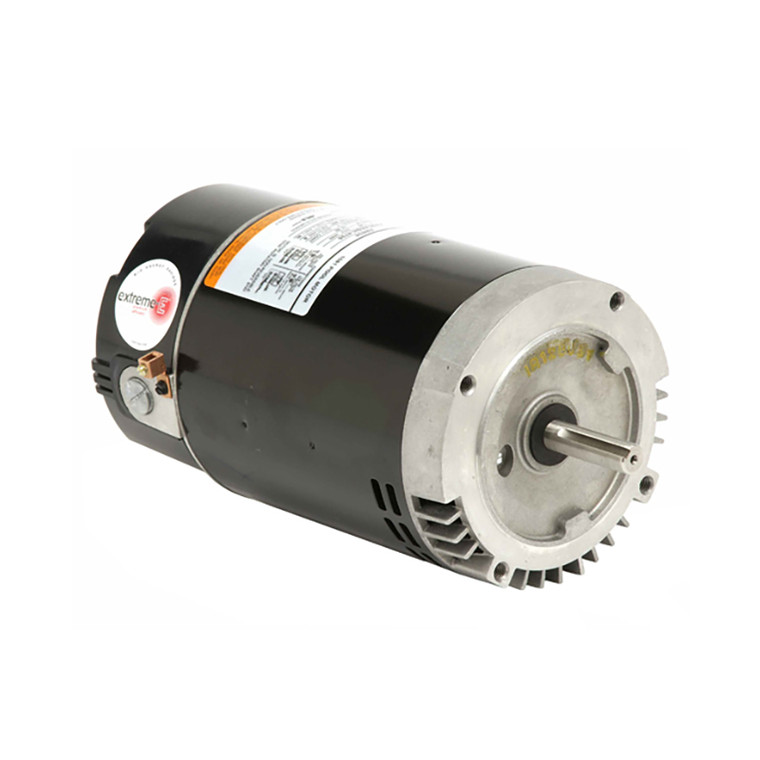

US Motors (Nidec), AC Motor, EB656, 0.5 HP, 3600 RPM, Single Phase, 208-230/115 V, 60 Hz, 56C (EB656)

US Motors (Nidec), AC Motor, EB656, 0.5 HP, 3600 RPM, Single Phase, 208-230/115 V, 60 Hz, 56C (EB656)

Brand:
US Motors (Nidec)
Model:
EB656
Condition:
New
0 Customer Reviews
VFDs.com Guarantee Badge
Out Of Stock
Call for Price
Adding to cart… The item has been added
Write a Review

Technical Specifications

Model:
EB656
Brand:
US Motors (Nidec)
Product Condition:
New
Motor Type:
Definite Purpose
Horsepower Rating:
0.5 HP
Synchronous RPM:
3600 RPM
Rated RPM:
3450 RPM
Frame Size:
56C
Rated Supply Voltage:
208-230/115 V
Motor Enclosure Type:
Open Drip Proof (ODP)
Rated Voltage:
208 V
Rated Voltage:
230 V
Rated Voltage:
115 V
Phase:
Single Phase
Service Factor:
1.6
Insulation Class:
B
Duty Cycle:
Continuous
Bearing Type:
BALL
Rated Input Frequency:
60 Hz

Product Information

US Motors (Nidec) Series

1/2 HP, 3450 RPM, EB656, 208-230/115 V, 60 HZ, 56C
