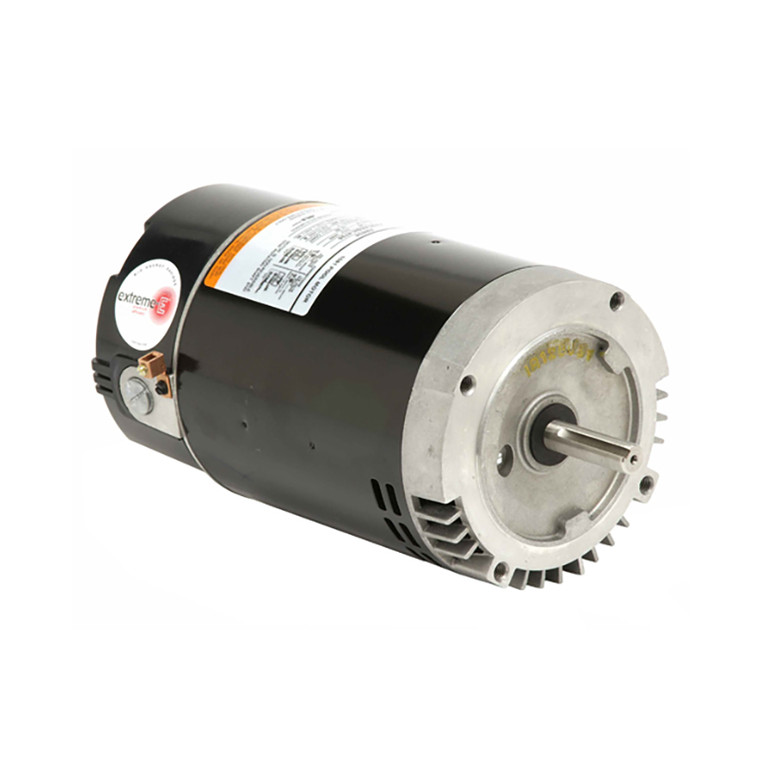

US Motors (Nidec), AC Motor, EB653, 1 HP, 3600 RPM, Single Phase, 208-230/115 V, 60 Hz, 56C (EB653)

US Motors (Nidec), AC Motor, EB653, 1 HP, 3600 RPM, Single Phase, 208-230/115 V, 60 Hz, 56C (EB653)

Brand:
US Motors (Nidec)
Model:
EB653
Condition:
New
0 Customer Reviews
VFDs.com Guarantee Badge
Out Of Stock
Call for Price
Adding to cart… The item has been added
Write a Review

Technical Specifications

Model:
EB653
Brand:
US Motors (Nidec)
Product Condition:
New
Motor Type:
Definite Purpose
Horsepower Rating:
1 HP
Synchronous RPM:
3600 RPM
Rated RPM:
3450 RPM
Frame Size:
56C
Rated Supply Voltage:
208-230/115 V
Motor Enclosure Type:
Open Drip Proof (ODP)
Rated Voltage:
208 V
Rated Voltage:
230 V
Rated Voltage:
115 V
Phase:
Single Phase
Service Factor:
1.4
Insulation Class:
B
Duty Cycle:
Continuous
C Dimension:
13
Bearing Type:
BALL
Rated Input Frequency:
60 Hz

Product Information

US Motors (Nidec) Series

1 HP, 3450 RPM, EB653, 208-230/115 V, 60 HZ, 56C
Download Brochure
Download Manual
