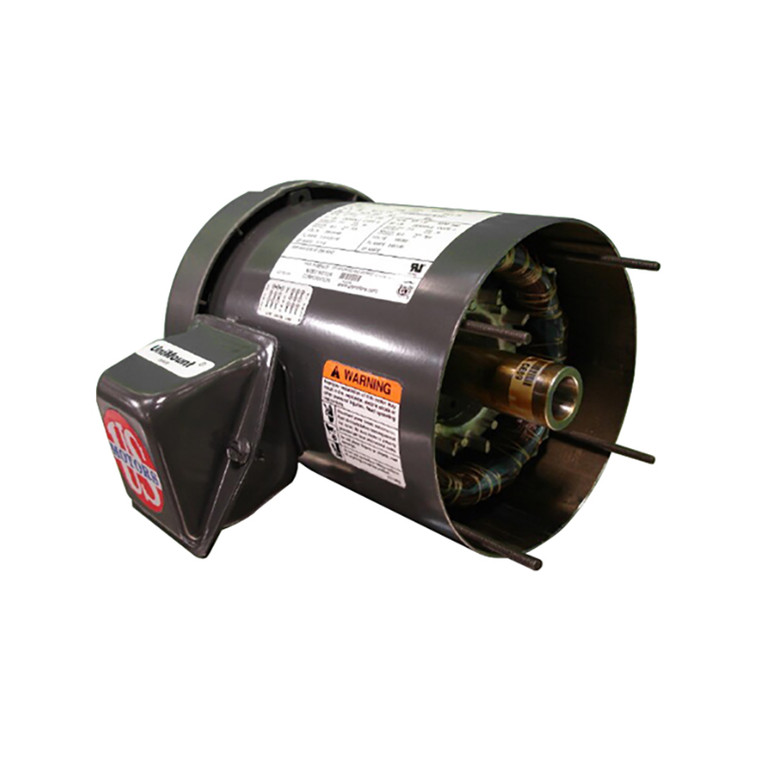

US Motors (Nidec), AC Motor, E190PE, 2 HP, 1800 RPM, Three Phase, 208-230/460 & 190/380 V, 60 , 50 Hz, 145T (E190PE)

US Motors (Nidec), AC Motor, E190PE, 2 HP, 1800 RPM, Three Phase, 208-230/460 & 190/380 V, 60 , 50 Hz, 145T (E190PE)

Brand:
US Motors (Nidec)
Model:
E190PE
Condition:
New
0 Customer Reviews
VFDs.com Guarantee Badge
Out Of Stock
Call for Price
Adding to cart… The item has been added
Write a Review

Technical Specifications

Model:
FN99
Brand:
US Motors (Nidec)
Product Condition:
New
Horsepower Rating:
2 HP
Synchronous RPM:
1800 RPM
Frame Size:
145T
Rated Supply Voltage:
208-230/460 & 190/380 V
Motor Enclosure Type:
Totally Enclosed Fan Cooled (TEFC)
Motor Design Class:
B
Full Load Torque:
6
Rated Voltage:
208 V
Rated Voltage:
230 V
Rated Voltage:
380 V
Rated Voltage:
460 V
Phase:
Three Phase
Service Factor:
1.25
Insulation Class:
F
Duty Cycle:
Continuous
Efficiency:
86.5%
C Dimension:
9.9
Bearing Type:
-
Rated Input Frequency:
60 Hz
Rated Input Frequency:
50 Hz
Motor Full Load Amps:
5.9-5.7/2.8 A

Product Information

US Motors (Nidec) Series

2 HP, 1750 & 1435 RPM, E190PE, 208-230/460 & 190/380 V, 60 & 50 HZ, 145T
