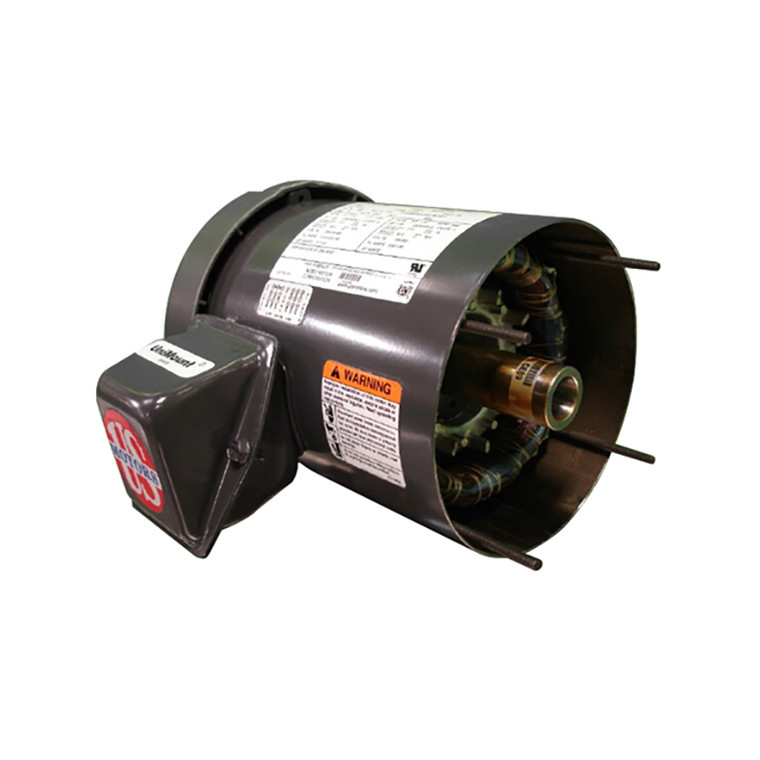

US Motors (Nidec), AC Motor, E183, 0.75 HP, 1800 RPM, Three Phase, 208-230/460 & 190/380 V, 60 , 50 Hz, 56 (E183)

US Motors (Nidec), AC Motor, E183, 0.75 HP, 1800 RPM, Three Phase, 208-230/460 & 190/380 V, 60 , 50 Hz, 56 (E183)

Brand:
US Motors (Nidec)
Model:
E183
Condition:
New
0 Customer Reviews
VFDs.com Guarantee Badge
Out Of Stock
Call for Price
Adding to cart… The item has been added
Write a Review

Technical Specifications

Model:
CE88
Brand:
US Motors (Nidec)
Product Condition:
New
Horsepower Rating:
0.75 HP
Synchronous RPM:
1800 RPM
Frame Size:
56
Rated Supply Voltage:
208-230/460 & 190/380 V
Motor Design Class:
B
Full Load Torque:
2.3
Rated Voltage:
208 V
Rated Voltage:
230 V
Rated Voltage:
380 V
Rated Voltage:
460 V
Phase:
Three Phase
Service Factor:
1.25
Insulation Class:
F
Duty Cycle:
Continuous
Efficiency:
75.5%
Construction:
Aluminum
Bearing Type:
6203-2Z-J/C3
Rated Input Frequency:
60 Hz
Rated Input Frequency:
50 Hz
Motor Full Load Amps:
2.7-2.8/1.4 A

Product Information

US Motors (Nidec) Series

3/4 HP, 1750 & 1435 RPM, E183, 208-230/460 & 190/380 V, 60 & 50 HZ, 56
