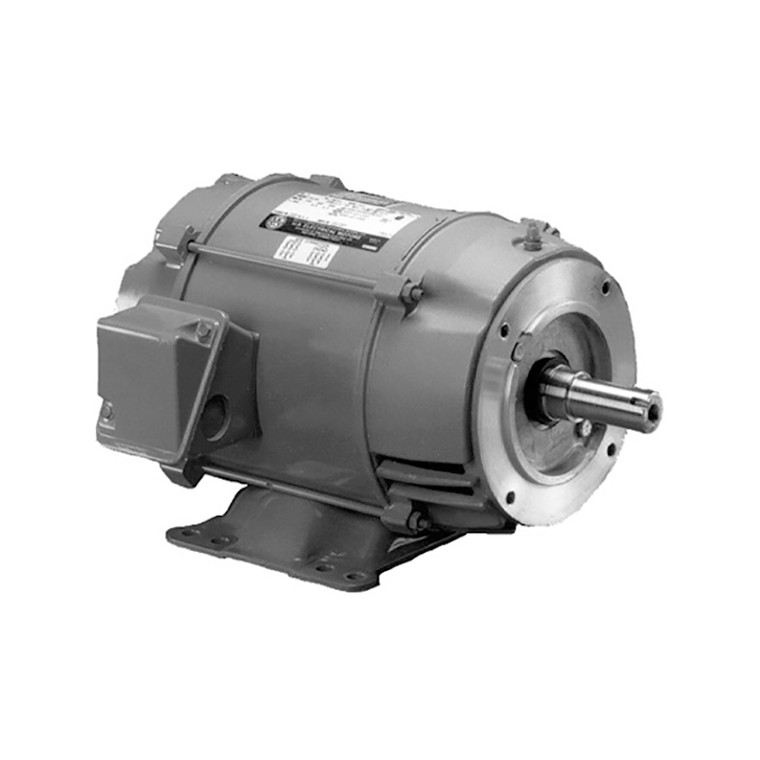

US Motors (Nidec), AC Motor, DJ32P3DM, 1.5 HP, 1200 RPM, Three Phase, 208-230/460 & 190/380 V, 60 , 50 Hz, 182JM (DJ32P3DM)

US Motors (Nidec), AC Motor, DJ32P3DM, 1.5 HP, 1200 RPM, Three Phase, 208-230/460 & 190/380 V, 60 , 50 Hz, 182JM (DJ32P3DM)

Brand:
US Motors (Nidec)
Model:
DJ32P3DM
Condition:
New
0 Customer Reviews
VFDs.com Guarantee Badge
Out Of Stock
Call for Price
Adding to cart… The item has been added
Write a Review

Technical Specifications

Model:
DJ32P3DM
Brand:
US Motors (Nidec)
Product Condition:
New
Motor Type:
Pump
Horsepower Rating:
1.5 HP
Synchronous RPM:
1200 RPM
Frame Size:
182JM
Rated Supply Voltage:
208-230/460 & 190/380 V
Motor Enclosure Type:
Open Drip Proof (ODP)
Motor Design Class:
B
Full Load Torque:
6.7
Rated Voltage:
208 V
Rated Voltage:
230 V
Rated Voltage:
380 V
Rated Voltage:
460 V
Phase:
Three Phase
Service Factor:
1.15
Insulation Class:
F
Duty Cycle:
Continuous
Efficiency:
86.5%
C Dimension:
16
Bearing Type:
6206-2Z-J/C3
Rated Input Frequency:
60 Hz
Rated Input Frequency:
50 Hz
Motor Full Load Amps:
5.2-5.3/2.6 A

Product Information

US Motors (Nidec) Series

1 1/2 HP, 1180 & 975 RPM, DJ32P3DM, 208-230/460 & 190/380 V, 60 & 50 HZ, 182JM
