US Motors (Nidec) logo

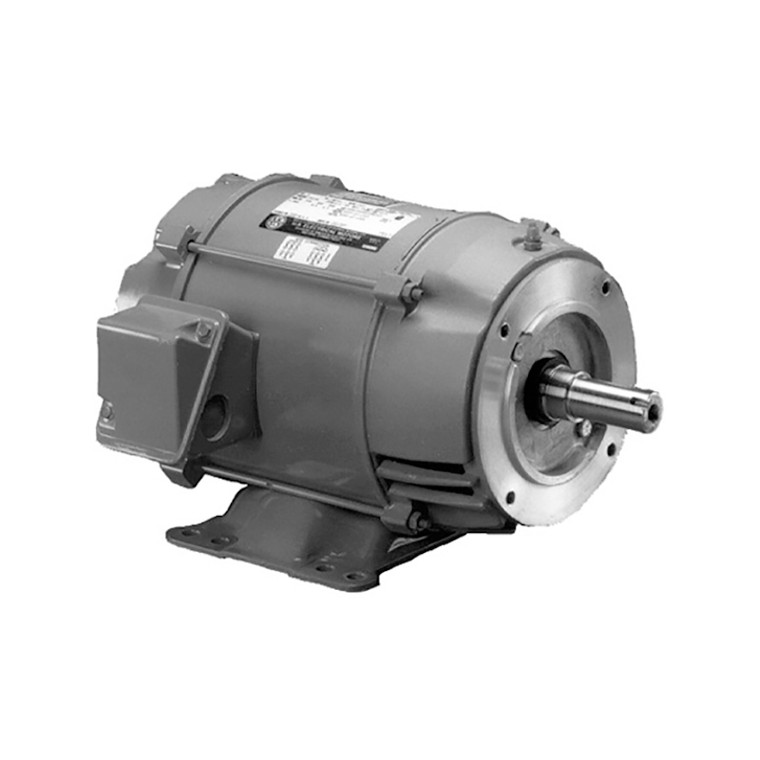

US Motors (Nidec), AC Motor, DJ30P2DP, 30 HP, 1800 RPM, Three Phase, 208-230/460 & 190/380 V, 60 , 50 Hz, 286JP (DJ30P2DP)

Brand:
US Motors (Nidec)
Model:
DJ30P2DP
Condition:
New
0 Customer Reviews
Out Of Stock
Adding to cart… The item has been added

Technical Specifications

Model:
DJ30P2DP
Brand:
US Motors (Nidec)
Product Condition:
New
Motor Type:
Pump
Horsepower Rating:
30 HP
Synchronous RPM:
1800 RPM
Frame Size:
286JP
Rated Supply Voltage:
208-230/460 & 190/380 V
Motor Enclosure Type:
Open Drip Proof (ODP)
Motor Design Class:
B
Full Load Torque:
88.6
Rated Voltage:
208 V
Rated Voltage:
230 V
Rated Voltage:
380 V
Rated Voltage:
460 V
Phase:
Three Phase
Service Factor:
1.15
Insulation Class:
F
Duty Cycle:
Continuous
Efficiency:
94.1%
C Dimension:
28.6
Bearing Type:
6210-2Z-J/C3
Rated Input Frequency:
60 Hz
Rated Input Frequency:
50 Hz
Motor Full Load Amps:
77-69/34 A

Product Information

US Motors (Nidec) Series

30 HP, 1780 & 1470 RPM, DJ30P2DP, 208-230/460 & 190/380 V, 60 & 50 HZ, 286JP
