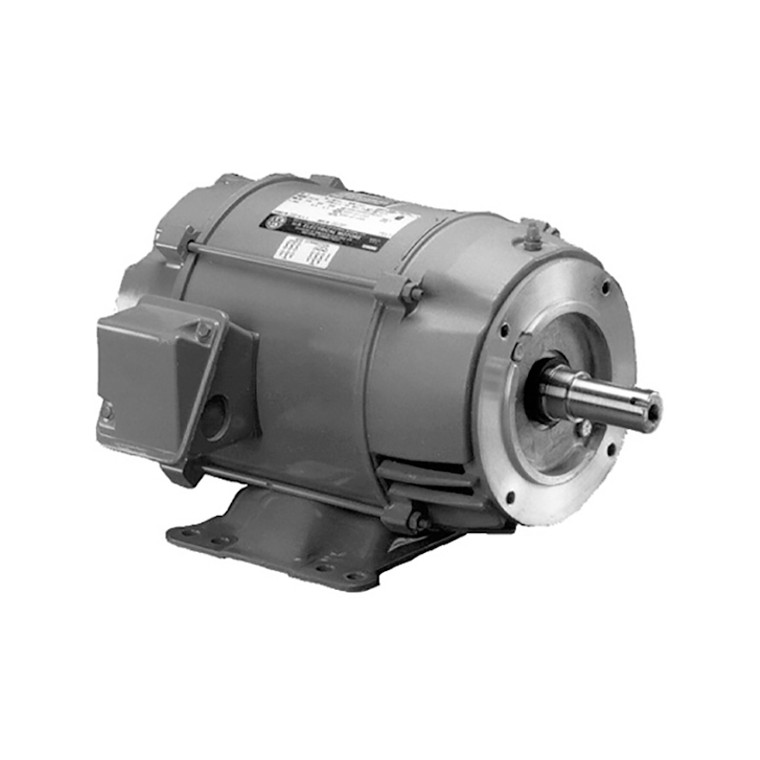

US Motors (Nidec), AC Motor, DJ2E2GM, 2 HP, 1800 RPM, Three Phase, 575 V, 60 Hz, 145JM (DJ2E2GM)

US Motors (Nidec), AC Motor, DJ2E2GM, 2 HP, 1800 RPM, Three Phase, 575 V, 60 Hz, 145JM (DJ2E2GM)

Brand:
US Motors (Nidec)
Model:
DJ2E2GM
Condition:
New
0 Customer Reviews
VFDs.com Guarantee Badge
Out Of Stock
Call for Price
Adding to cart… The item has been added
Write a Review

Technical Specifications

Model:
DJ2E2GM
Brand:
US Motors (Nidec)
Product Condition:
New
Motor Type:
Pump
Horsepower Rating:
2 HP
Synchronous RPM:
1800 RPM
Rated RPM:
1740 RPM
Frame Size:
145JM
Rated Supply Voltage:
575 V
Motor Enclosure Type:
Open Drip Proof (ODP)
Motor Design Class:
B
Full Load Torque:
6
Rated Voltage:
575 V
Phase:
Three Phase
Service Factor:
1.15
Insulation Class:
F
Duty Cycle:
Continuous
Efficiency:
84%
C Dimension:
15.4
Bearing Type:
6203-2Z-J/C3
Rated Input Frequency:
60 Hz
Motor Full Load Amps:
2.4 A

Product Information

US Motors (Nidec) Series

2 HP, 1740 RPM, DJ2E2GM, 575 V, 60 HZ, 145JM
