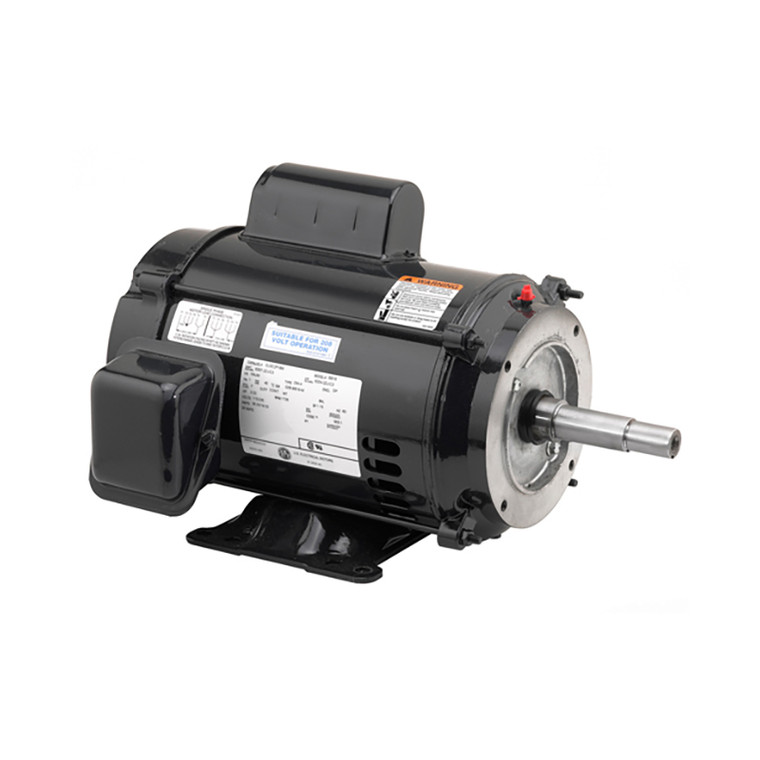

US Motors (Nidec), AC Motor, DJ2C2P18M, 2 HP, 1800 RPM, Single Phase, 115/230 V, 60 Hz, 182JM (DJ2C2P18M)

US Motors (Nidec), AC Motor, DJ2C2P18M, 2 HP, 1800 RPM, Single Phase, 115/230 V, 60 Hz, 182JM (DJ2C2P18M)

Brand:
US Motors (Nidec)
Model:
DJ2C2P18M
Condition:
New
0 Customer Reviews
VFDs.com Guarantee Badge
Out Of Stock
Call for Price
Adding to cart… The item has been added
Write a Review

Technical Specifications

Model:
DJ2C2P18M
Brand:
US Motors (Nidec)
Product Condition:
New
Motor Type:
Pump
Horsepower Rating:
2 HP
Synchronous RPM:
1800 RPM
Rated RPM:
1730 RPM
Frame Size:
182JM
Rated Supply Voltage:
115/230 V
Motor Enclosure Type:
Open Drip Proof (ODP)
Motor Design Class:
L
Rated Voltage:
230 V
Rated Voltage:
115 V
Phase:
Single Phase
Service Factor:
1.15
Insulation Class:
F
Duty Cycle:
Continuous
Construction:
Rolled Steel
C Dimension:
17.4
Bearing Type:
6204-2Z-J/C3
Rated Input Frequency:
60 Hz
Motor Full Load Amps:
23.2/11.6 A

Product Information

US Motors (Nidec) Series

2 HP, 1730 RPM, DJ2C2P18M, 115/230 V, 60 HZ, 182JM
