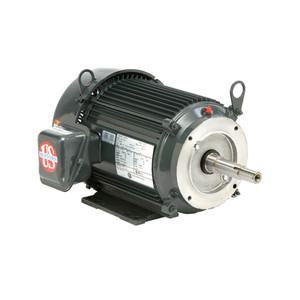

US Motors (Nidec), AC Motor, DJ25P1DM, 25 HP, 3600 RPM, Three Phase, 208-230/460 & 190/380 V, 60 , 50 Hz, 256JM (DJ25P1DM)

US Motors (Nidec), AC Motor, DJ25P1DM, 25 HP, 3600 RPM, Three Phase, 208-230/460 & 190/380 V, 60 , 50 Hz, 256JM (DJ25P1DM)

Brand:
US Motors (Nidec)
Model:
DJ25P1DM
Condition:
New
0 Customer Reviews
VFDs.com Guarantee Badge
Out Of Stock
Call for Price
Adding to cart… The item has been added
Write a Review

Technical Specifications

Model:
DJ25P1DM
Brand:
US Motors (Nidec)
Product Condition:
New
Motor Type:
Pump
Horsepower Rating:
25 HP
Synchronous RPM:
3600 RPM
Frame Size:
256JM
Rated Supply Voltage:
208-230/460 & 190/380 V
Motor Enclosure Type:
Open Drip Proof (ODP)
Motor Design Class:
B
Full Load Torque:
37.1
Rated Voltage:
208 V
Rated Voltage:
230 V
Rated Voltage:
380 V
Rated Voltage:
460 V
Phase:
Three Phase
Service Factor:
1.15
Insulation Class:
F
Duty Cycle:
Continuous
Efficiency:
91.7%
C Dimension:
25.1
Bearing Type:
6309-2Z-J/C3
Rated Input Frequency:
60 Hz
Rated Input Frequency:
50 Hz
Motor Full Load Amps:
65-57/28.7 A

Product Information

US Motors (Nidec) Series

25 HP, 3540 & 2915 RPM, DJ25P1DM, 208-230/460 & 190/380 V, 60 & 50 HZ, 256JM
