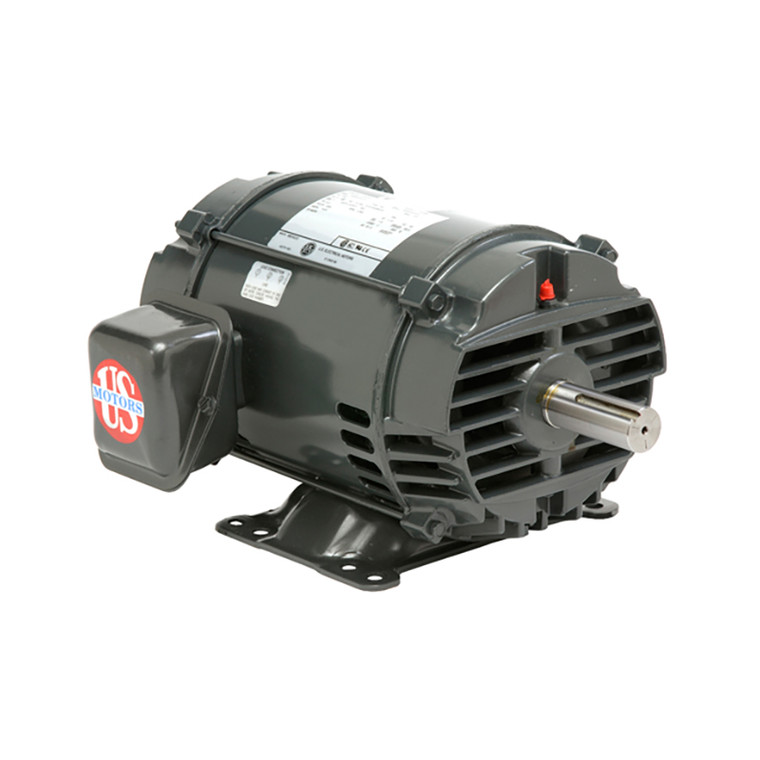

US Motors (Nidec), AC Motor, DH40S1GF, 40 HP, 3600 RPM, Three Phase, 575 V, 60 Hz, 284T (DH40S1GF)

US Motors (Nidec), AC Motor, DH40S1GF, 40 HP, 3600 RPM, Three Phase, 575 V, 60 Hz, 284T (DH40S1GF)

Brand:
US Motors (Nidec)
Model:
DH40S1GF
Condition:
New
0 Customer Reviews
VFDs.com Guarantee Badge
Out Of Stock
Call for Price
Adding to cart… The item has been added
Write a Review

Technical Specifications

Model:
DH40S1GF
Brand:
US Motors (Nidec)
Product Condition:
New
Motor Type:
Definite Purpose
Horsepower Rating:
40 HP
Synchronous RPM:
3600 RPM
Rated RPM:
3535 RPM
Frame Size:
284T
Rated Supply Voltage:
575 V
Motor Enclosure Type:
Open Drip Proof (ODP)
Full Load Torque:
59.4
Rated Voltage:
575 V
Phase:
Three Phase
Service Factor:
1
Insulation Class:
F
Efficiency:
88.5%
Bearing Type:
6210-2Z-J/C3
Rated Input Frequency:
60 Hz
Motor Full Load Amps:
39 A

Product Information

US Motors (Nidec) Series

40 HP, 3535 RPM, DH40S1GF, 575 V, 60 HZ, 284T
