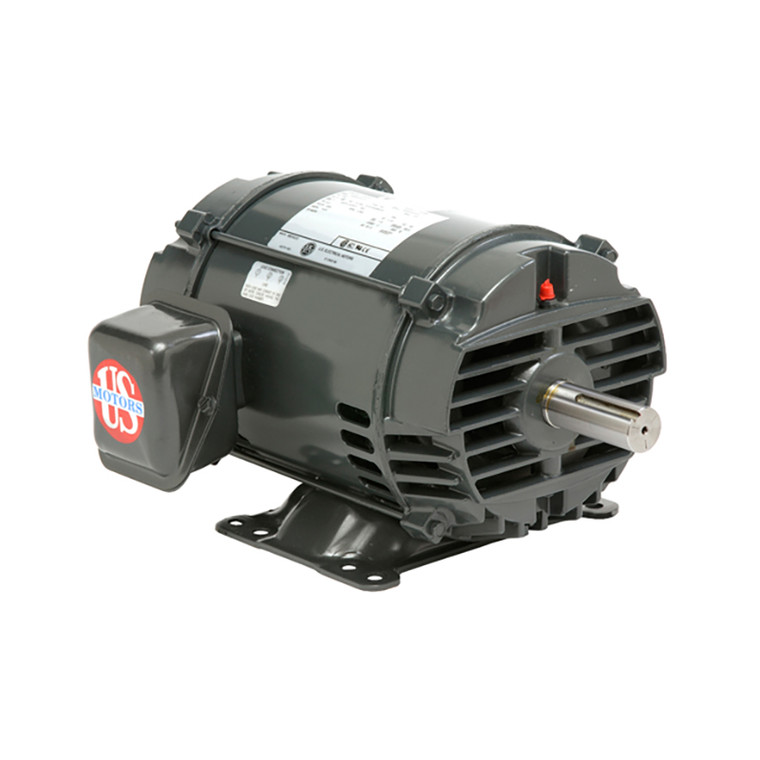

US Motors (Nidec), AC Motor, DH30S1GF, 30 HP, 3600 RPM, Three Phase, 575 V, 60 Hz, 256T (DH30S1GF)

US Motors (Nidec), AC Motor, DH30S1GF, 30 HP, 3600 RPM, Three Phase, 575 V, 60 Hz, 256T (DH30S1GF)

Brand:
US Motors (Nidec)
Model:
DH30S1GF
Condition:
New
0 Customer Reviews
VFDs.com Guarantee Badge
Out Of Stock
Call for Price
Adding to cart… The item has been added
Write a Review

Technical Specifications

Model:
DH30S1GF
Brand:
US Motors (Nidec)
Product Condition:
New
Motor Type:
Definite Purpose
Horsepower Rating:
30 HP
Synchronous RPM:
3600 RPM
Rated RPM:
3525 RPM
Frame Size:
256T
Rated Supply Voltage:
575 V
Motor Enclosure Type:
Open Drip Proof (ODP)
Motor Design Class:
B
Full Load Torque:
44.7
Rated Voltage:
575 V
Phase:
Three Phase
Service Factor:
1
Insulation Class:
F
Efficiency:
90.2%
Bearing Type:
6207-2Z-J/C3
Rated Input Frequency:
60 Hz
Motor Full Load Amps:
28.3 A

Product Information

US Motors (Nidec) Series

30 HP, 3525 RPM, DH30S1GF, 575 V, 60 HZ, 256T
