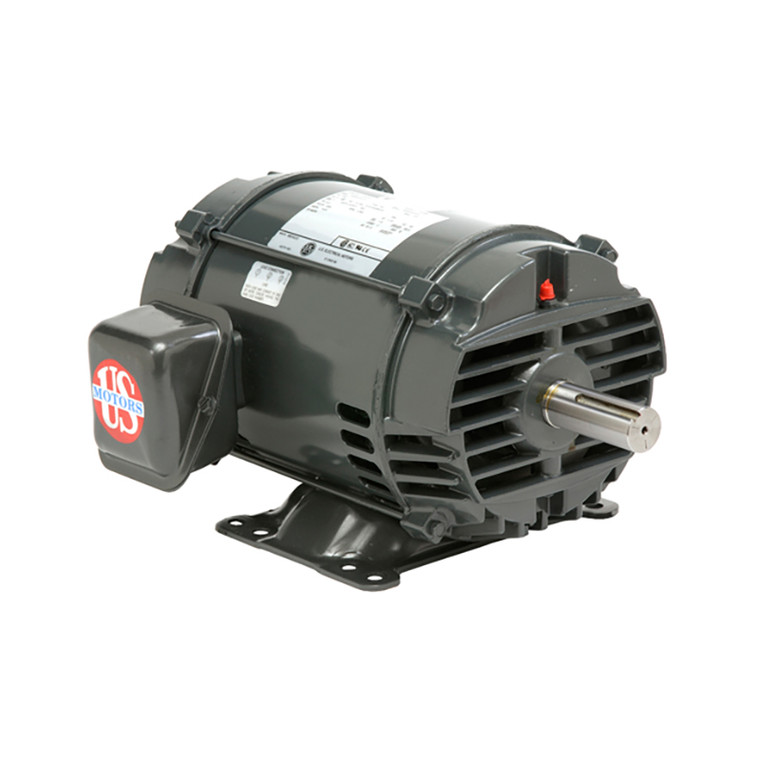

US Motors (Nidec), AC Motor, DH125S2BF, 125 HP, 1800 RPM, Three Phase, 230/460 V, 60 Hz, 404T (DH125S2BF)

US Motors (Nidec), AC Motor, DH125S2BF, 125 HP, 1800 RPM, Three Phase, 230/460 V, 60 Hz, 404T (DH125S2BF)

Brand:
US Motors (Nidec)
Model:
DH125S2BF
Condition:
New
0 Customer Reviews
VFDs.com Guarantee Badge
Out Of Stock
Call for Price
Adding to cart… The item has been added
Write a Review

Technical Specifications

Model:
DH125S2BF
Brand:
US Motors (Nidec)
Product Condition:
New
Motor Type:
Definite Purpose
Horsepower Rating:
125 HP
Synchronous RPM:
1800 RPM
Rated RPM:
1775 RPM
Frame Size:
404T
Rated Supply Voltage:
230/460 V
Motor Enclosure Type:
Open Drip Proof (ODP)
Full Load Torque:
369.7
Rated Voltage:
230 V
Rated Voltage:
460 V
Phase:
Three Phase
Service Factor:
1
Insulation Class:
F
Efficiency:
93.6%
Construction:
Cast Iron
C Dimension:
32.5
Bearing Type:
5215-A
Rated Input Frequency:
60 Hz
Motor Full Load Amps:
288/144 A

Product Information

US Motors (Nidec) Series

125 HP, 1775 RPM, DH125S2BF, 230/460 V, 60 HZ, 404T
